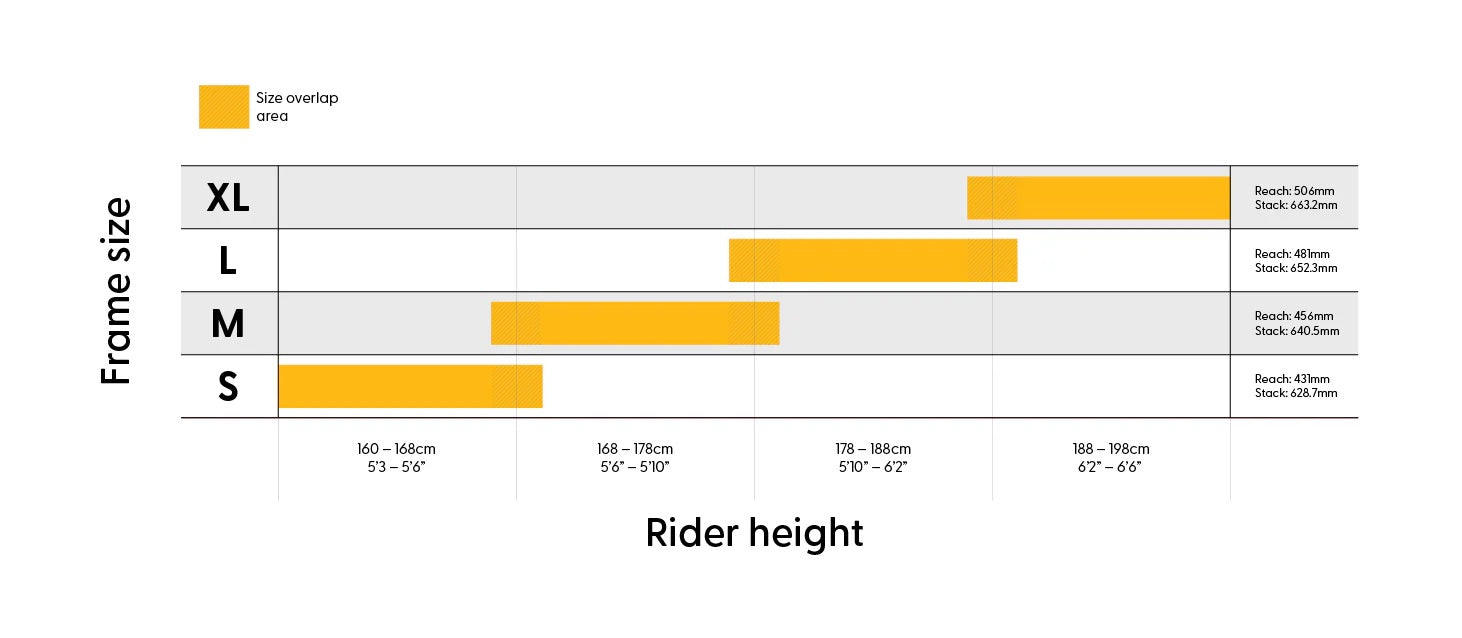

- FRAME SIZE

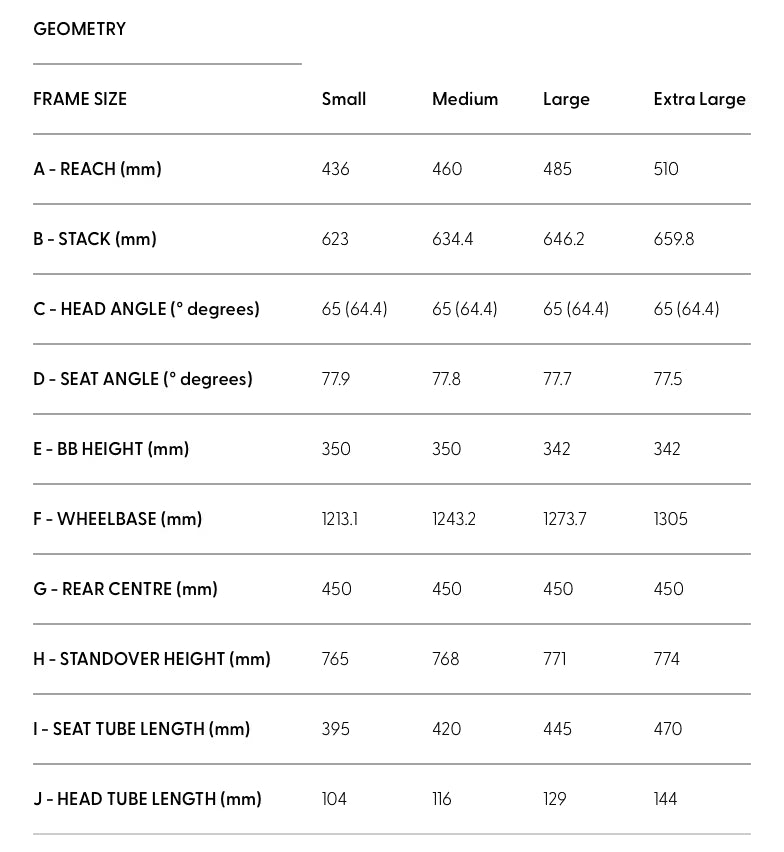

- GEOMETRY
The capability to do great things

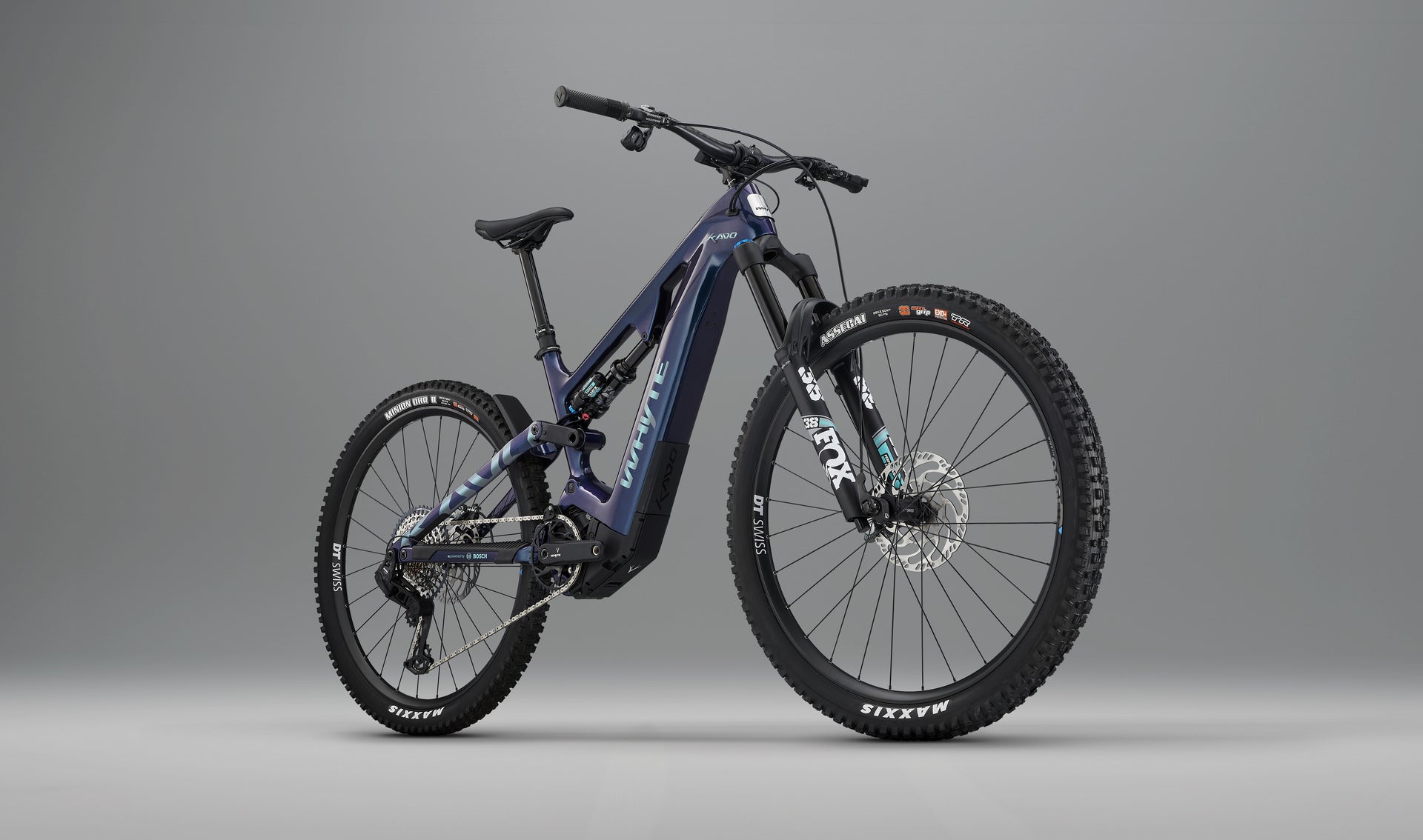

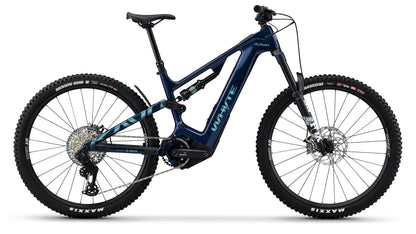

Get ready to experience a ride that will reset all expectations. Kado RSX. Our most capable electric mountain bike (eMTB) ever.
With an empowering ride; confidence-inspiring handling; the range to go for miles and miles; Bosch’s refined and reliable motor; an easy to remove 800Wh internal battery; our game-changing low centre of gravity design; meticulously tuned suspension for perfect control; specially curated parts, and more, Kado RSX is ready to help you push back your riding boundaries – everywhere.
If you can dream it, you can do it.
Highlights
- 160mm front + 150mm rear of custom-tuned suspension travel.
- Uni-directional full carbon fibre frame is light and reassuringly strong.
- Bosch's fifth generation Performance Line CX full-torque (85Nm), full-power (600W) motor.
- 800Wh battery removeable internal so you can ride further.
- 29in trail-smoothing wheels front and rear.
- Optimised low centre of gravity gives you exceptional, confidence-inspiring handling.
- Geometry adjustment: Switch from ‘High’ to ‘Low’ – to slacken geo by 0.6º and lower the bottom bracket by 8mm – for more gravity-friendly handling.
- Switchable rear wheel: You can swap the rear wheelsize by changing the ‘Shape.It’ link to go from full 29er front and rear to MX (aka ‘mixed wheels – 29in front, 27.5in rear).
Learn more about the full Kado range [here]
E-BIKE SPECIFIC
DRIVE UNIT Bosch Performance Line CX (Smart System) Drive Unit with 85Nm maximum torque, 600W of peak power and 250W of nominal
power. Features four power mode settings including Tour+ and eMTB
BATTERY Bosch PowerTube 800Wh, perfectly integrated into the frame with an intuitive lockable mechanism for easy removal

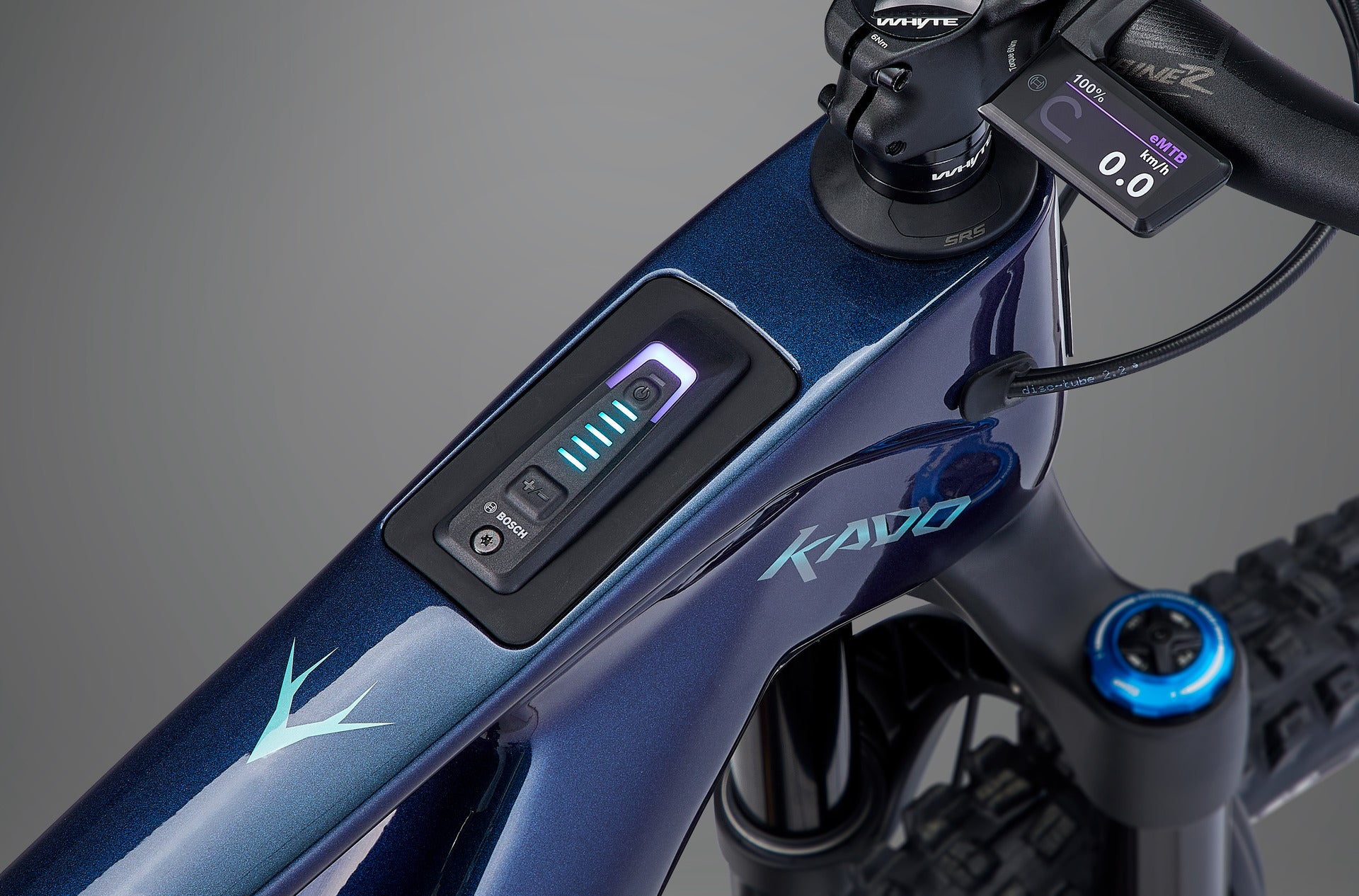

DISPLAY Bosch System controller mounted within the top tube, paired with the discrete bar mounted Mini Remote and Purion 400.
Also connects to the Bosch eBike Flow smartphone app to give you even more insight and control at your fingertips.
CHARGER Charger 4A (230V)
SPECIFICATIONS
- FRAME
Uni-directional carbon mainframe and rear triangle, tapered head tube,
internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts - FORK

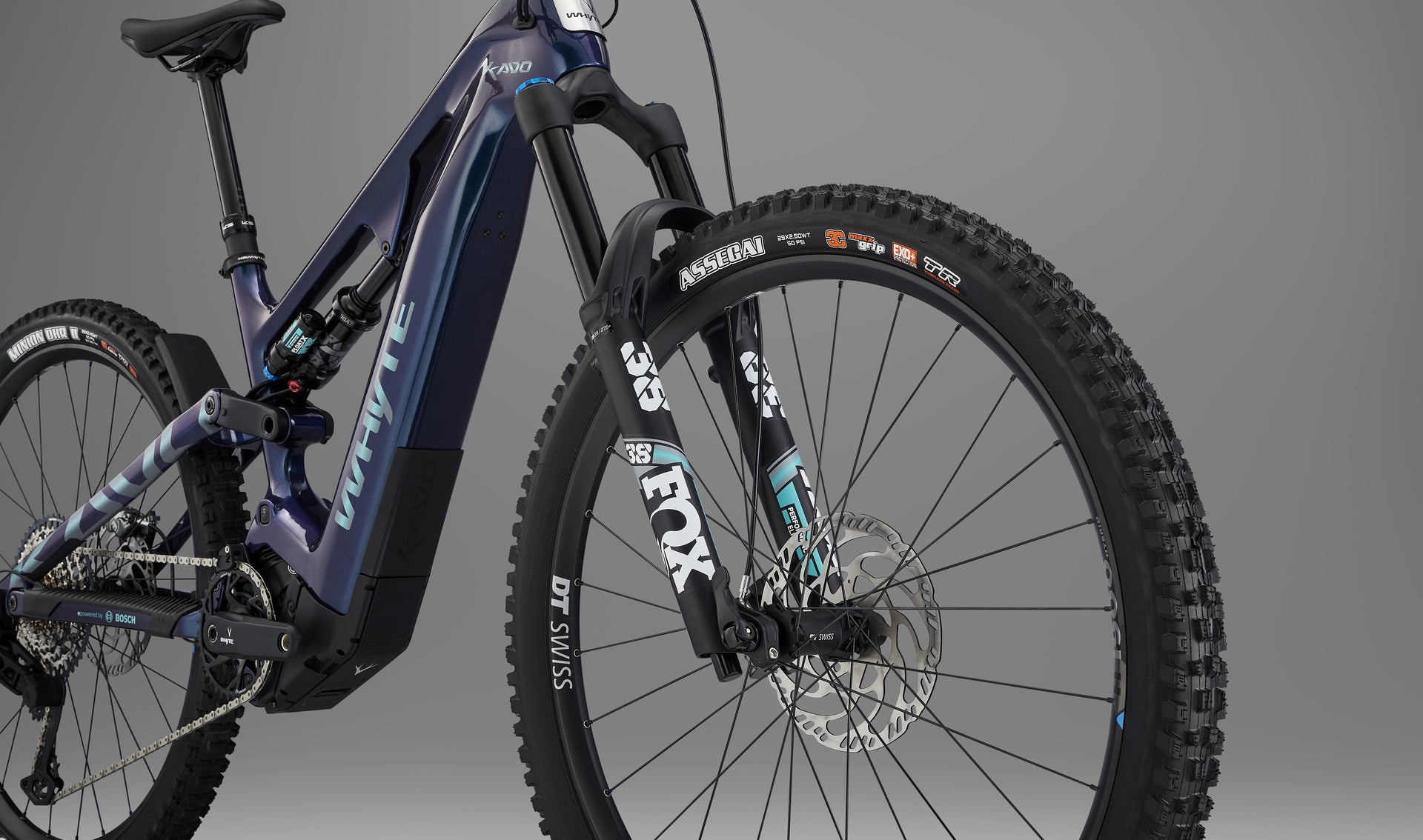

Fox Float 38 Performance Elite, 160mm travel, 44mm offset with Grip X2 damper,
tapered steerer, 110mm x 15mm Boost, E-thru-axle - SHOCK

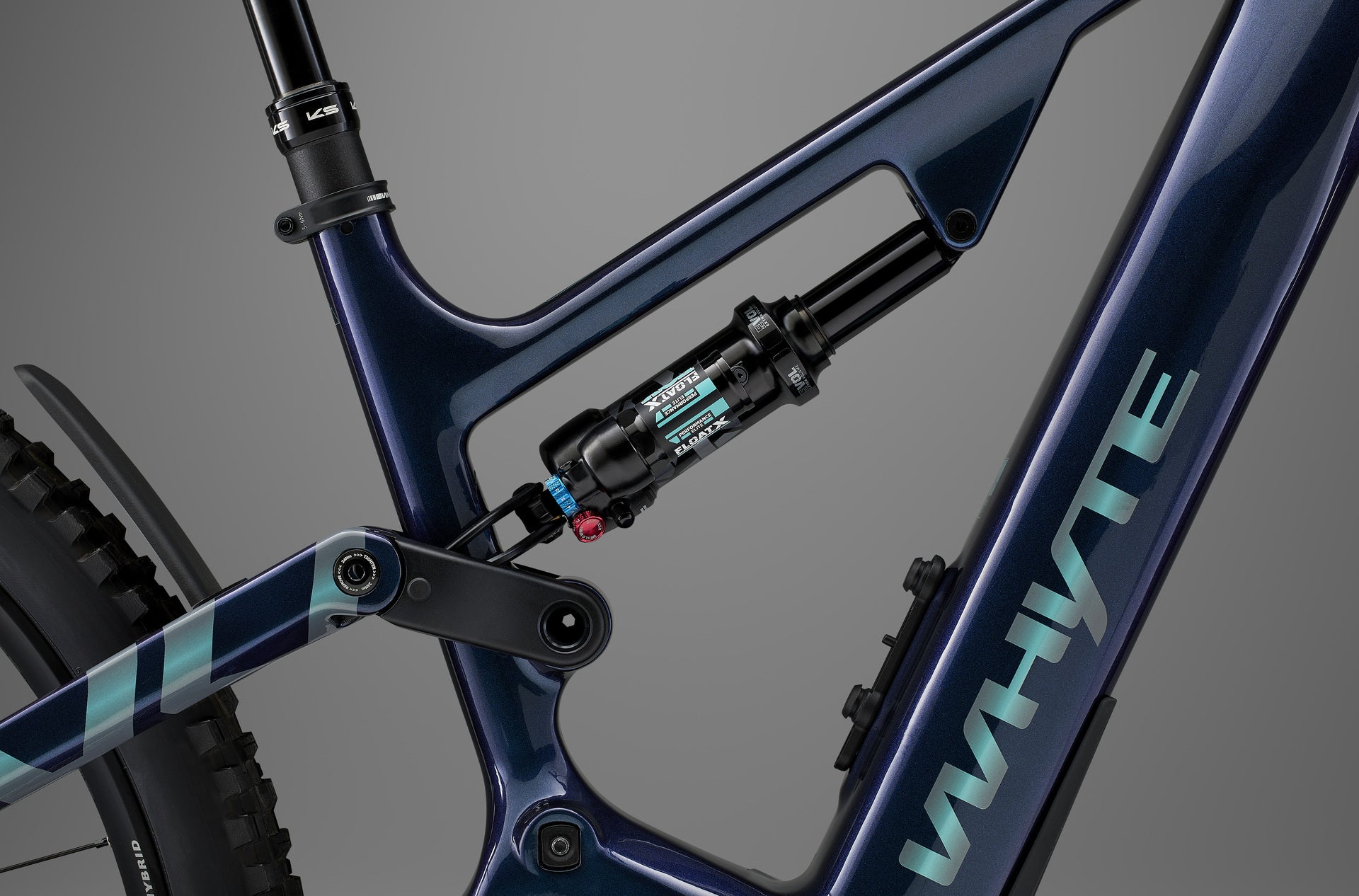

Fox Float X Performance Elite DPS, EVOL LV, custom tuned for Whyte - RIMS
DT Swiss Hybrid HX1900 - HUBS
Rear: DT Swiss Hybrid H1900, 12mm x 148mm Boost spacing, SRAM XD steel driver,
six bolt
Front: DT Swiss Hybrid H1900, 110mm x 15mm Boost, six bolt - HEADSET
FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact
bearing (ACB) cartridge bearings, with side entry internal routing - TYRES
Maxxis Assegai WT, TR, 29in x 2.5in 120TPI, EXO+ sidewall protection, 3C
MaxxGrip, dual compound, folding bead, front; Maxxis Minion DHR 2 WT, TR,
29in x 2.4in 120TPI, Double Down casing, 3C MaxxTerra, dual compound, rear - CRANK SET

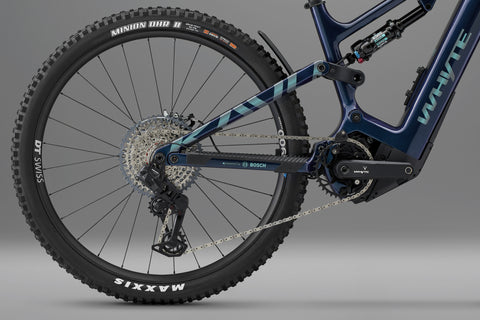

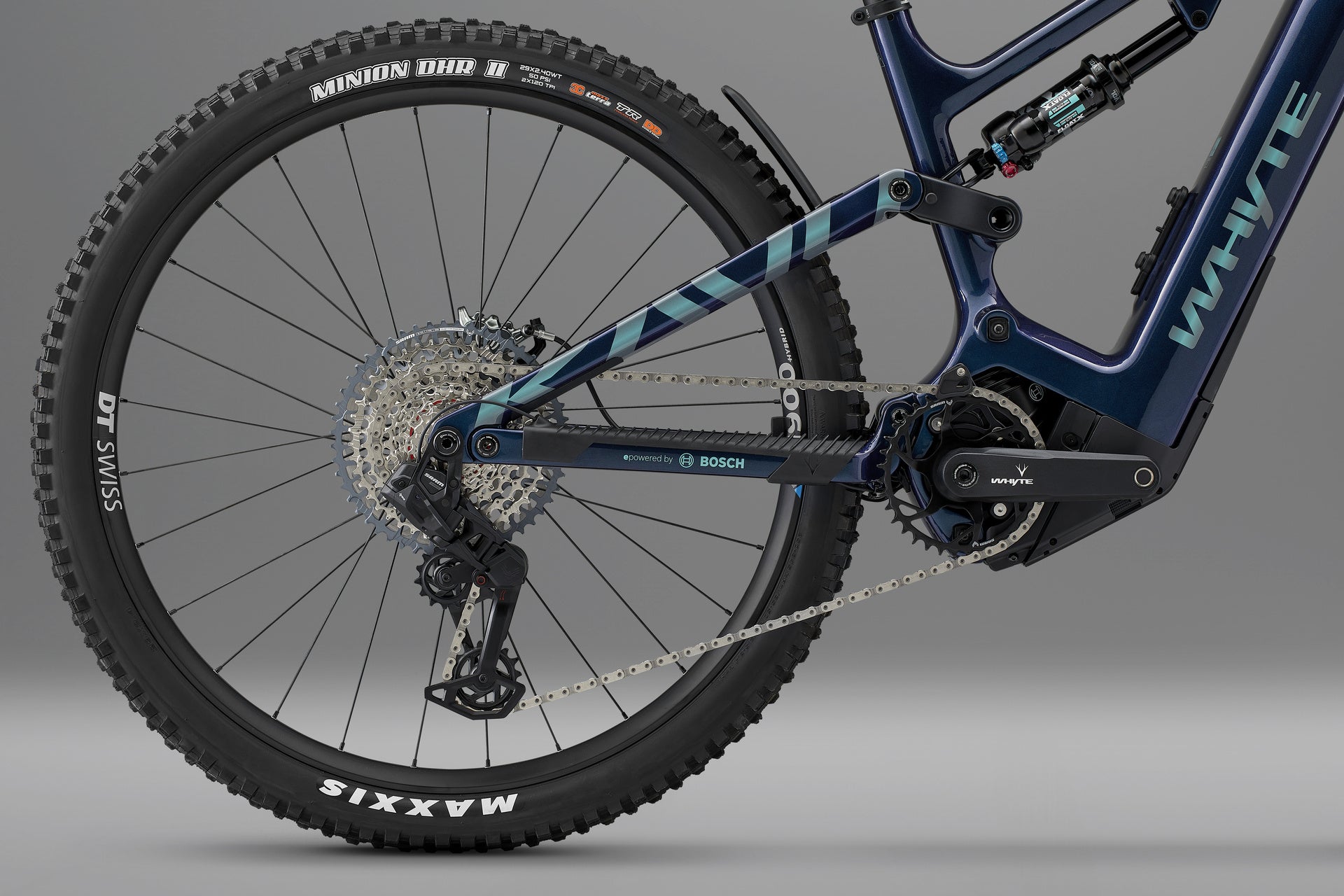

Whyte 160mm ISIS arms, SRAM direct mount 36T chainring, T-Type - CHAIN
SRAM GX T-Type, 12 speed - REAR DERAILLEUR
SRAM S1000 AXS Eagle, 12 speed
- SHIFTER

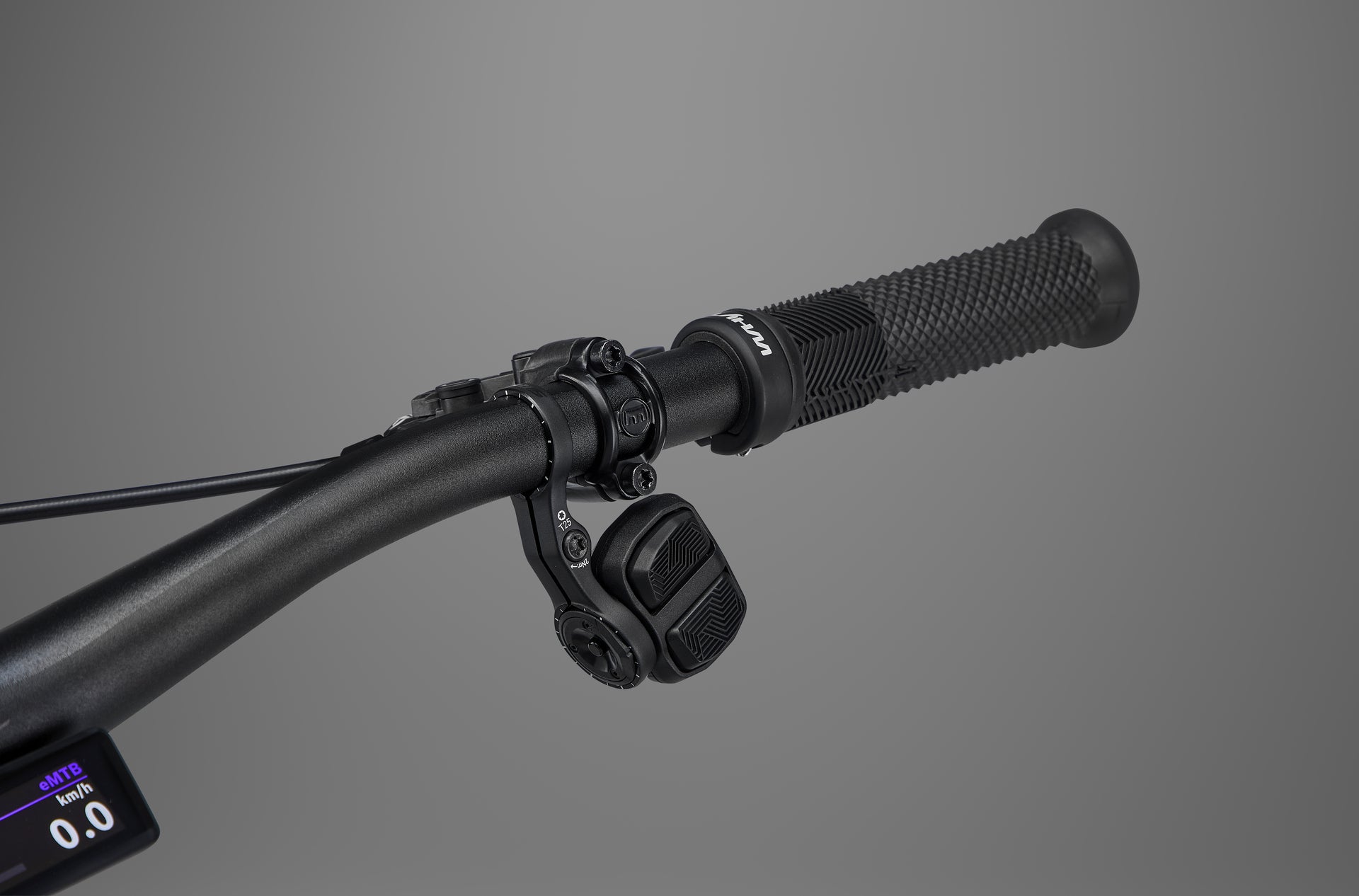

SRAM AXS Pod, right, MMX, 12 speed - CASETTE
SRAM XS 1275, T-Type, 10-52T, 12 speed - HANDLEBAR
OneUp Alloy Bar 35mm, 800mm - GRIPS
Whyte Enduro lock-on - STEM
Whyte, 35mm extension, 35mm bar bore - BRAKES FRONT

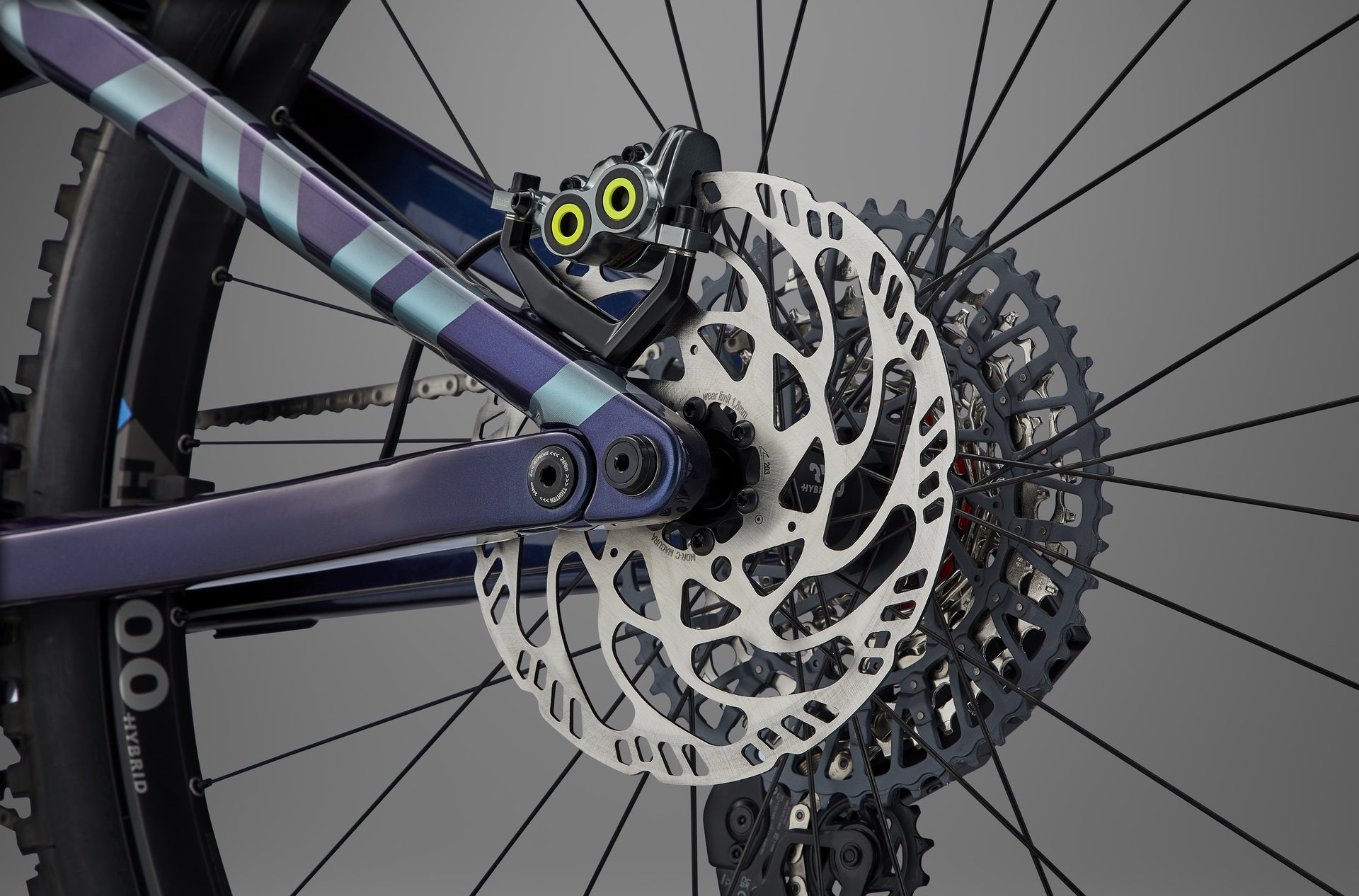

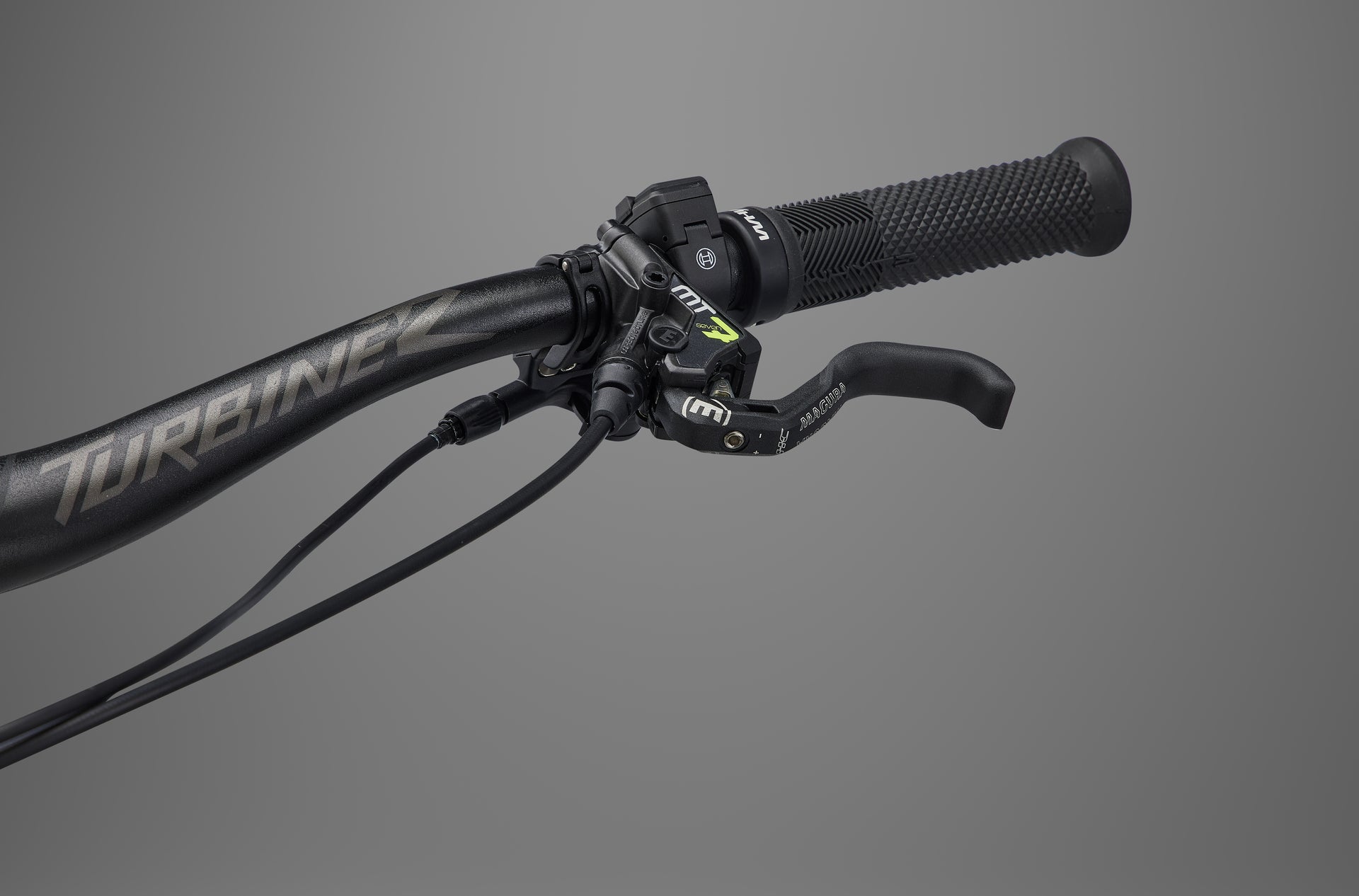

Magura MT7, one finger lever, 203mm MDRC 6 bolt rotors - SADDLE
Whyte Custom - SEATPOST

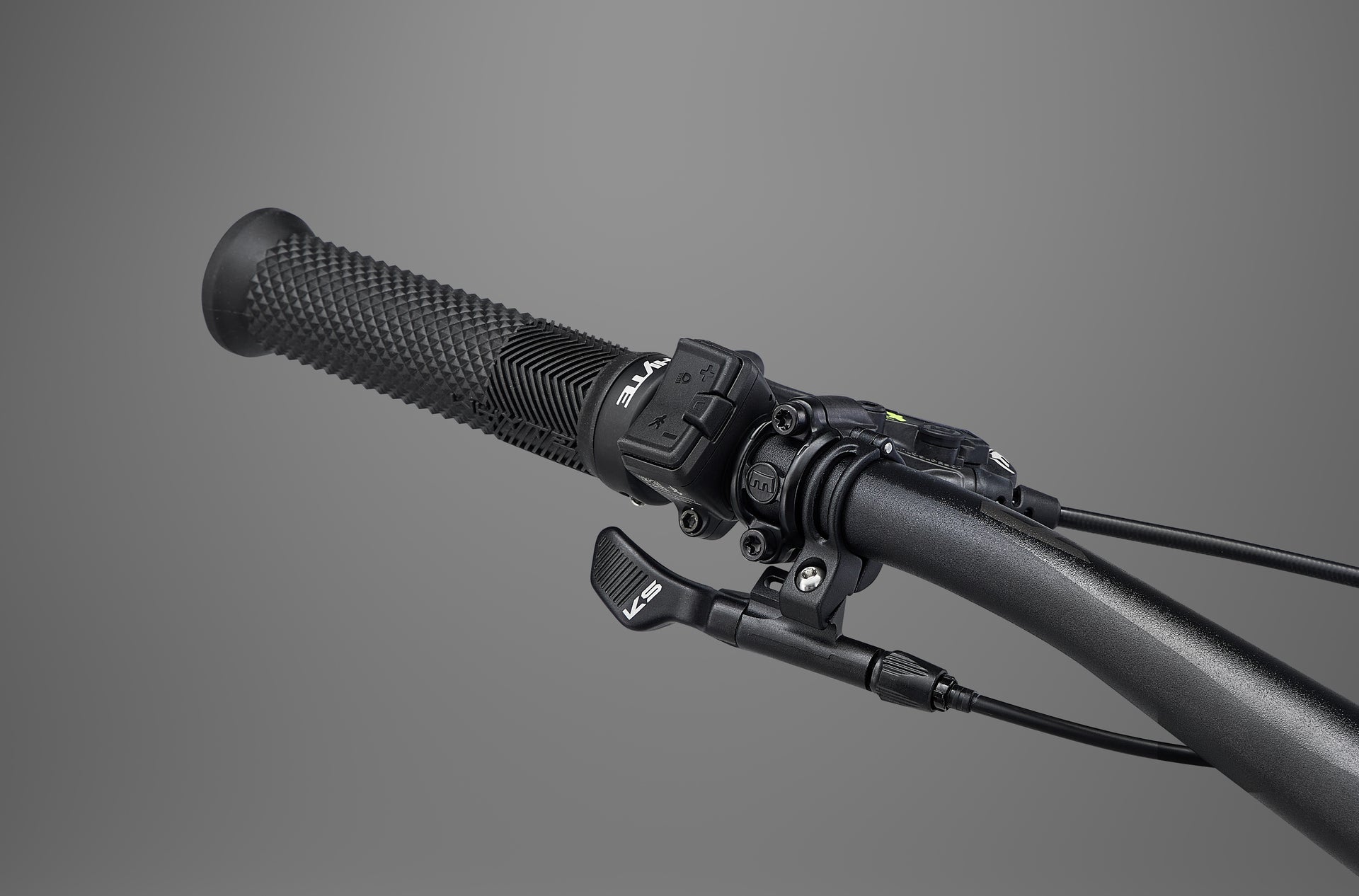

KS Vantage, 34.9mm, external 30mm adjustment, size-specific drop (size S:
150mm travel; size M: 170mm travel; sizes L/XL: 200mm travel) - SIZES
S, M, L, XL - COLOUR
Gloss midnight blue - WEIGHT
tbc - BOSCH POWERMORE COMPATIBLE
Yes
Although we've taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required, as per the manufacturer.
