Our most affordable eMTB ever
Our confidence-inspiring Kado S delivers high performance with a ‘high value’ price to give you the range, power and capability to realise your riding dreams – without breaking the bank.
With an empowering ride; confidence-inspiring handling; the range to go for miles and miles; Bosch’s refined and reliable motor; an easy to remove internal battery; our game-changing low centre of gravity design; meticulously tuned suspension for perfect control; specially curated parts, and more, Kado S is ready to help you push back your riding boundaries – everywhere.
If you can dream it, you can do it.
Highlights
- 160mm front + 150mm rear of custom-tuned suspension travel.
- Multi-butted 6061 T-6 aluminium hydroformed frame is built to last.
- Bosch's fifth generation Performance Line CX full-torque (85Nm), full-power (600W) motor.
- 600Wh slide-in internal battery gives you good range.
- 29in trail-smoothing wheels front and rear.
- Optimised low centre of gravity gives you exceptional, confidence-inspiring handling
- Geometry adjustment: Switch from ‘High’ to ‘Low’ – to slacken geo by 0.6º and lower the bottom bracket by 8mm – for more gravity-friendly handling.
- Switchable rear wheel: You can swap the rear wheelsize by changing the ‘Shape.It’ link to go from full 29er front and rear to MX (aka ‘mixed wheels – 29in front, 27.5in rear)..
E-BIKE SPECIFIC
DRIVE UNIT Bosch Performance Line CX (Smart System) Drive Unit with 85Nm maximum torque, 600W of peak power and 250W of nominal
power. Features four power mode settings including Tour+ and eMTB
BATTERY Bosch PowerTube 600Wh, perfectly integrated into the frame with an intuitive lockable mechanism for easy removal.

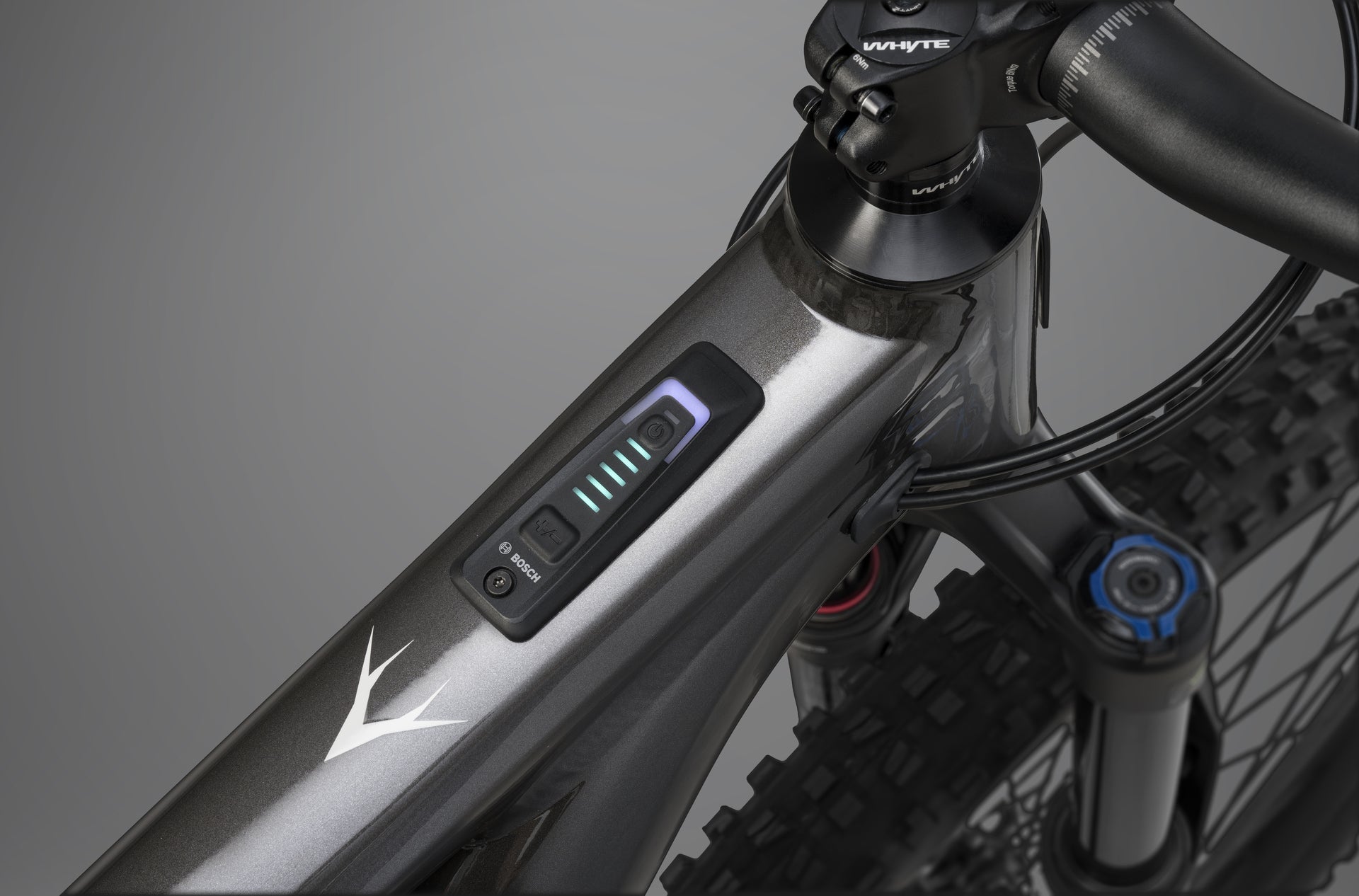

DISPLAY Bosch System controller mounted within the top tube, paired with the discrete bar mounted Mini Remote.
Also connects to the Bosch eBike Flow smartphone app to give you even more insight and control at your fingertips.
CHARGER Charger 4A (230V)
SPECIFICATIONS
- FRAME
6061 alloy, hydroformed T6 aluminium, multi-butted, custom drawn, tapered headtube, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts - FORK

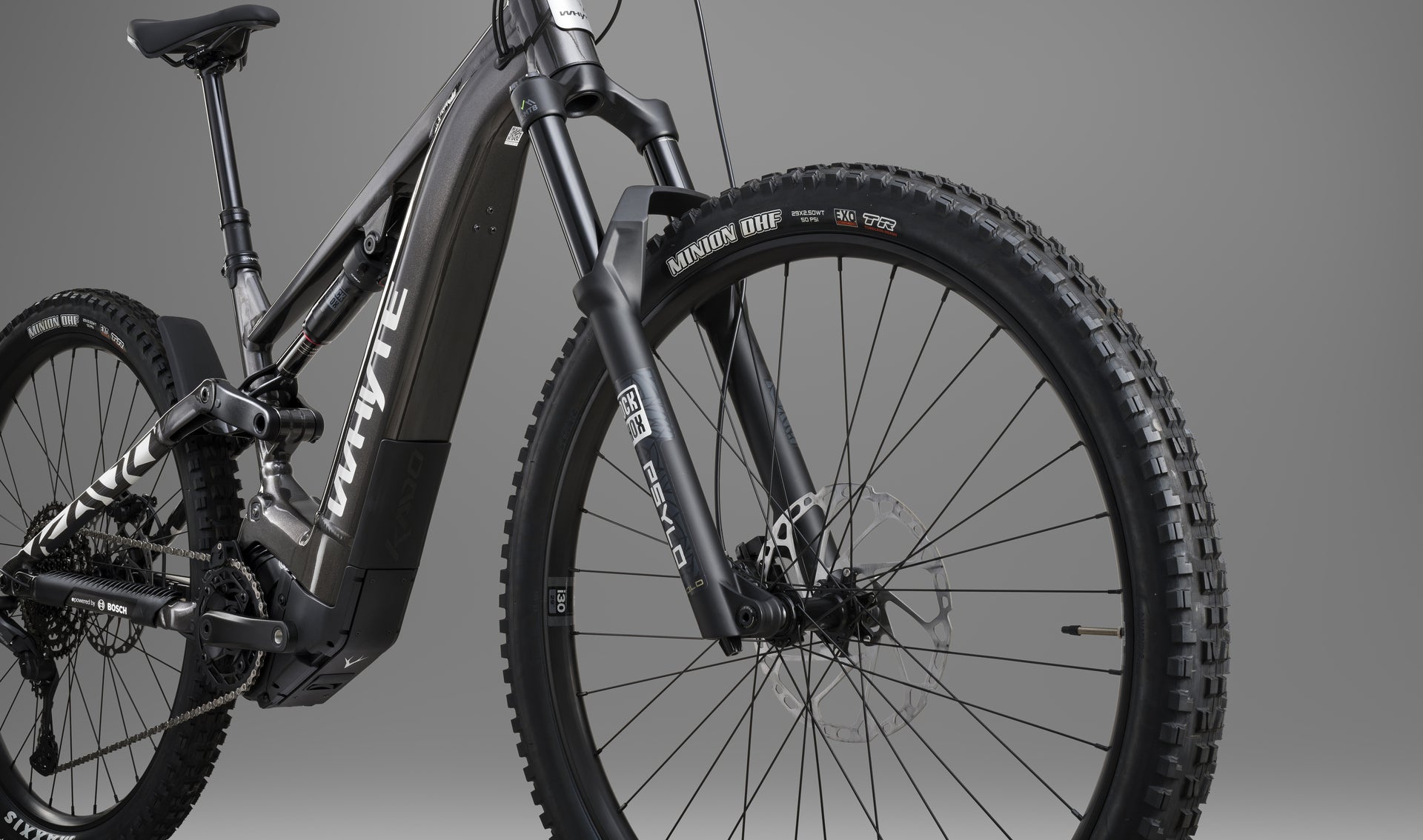

RockShox Psylo Gold, 160mm travel, DebonAir, Isolator RC damper, Fast Black coating, tapered steerer, 110 x 15mm Boost - SHOCK

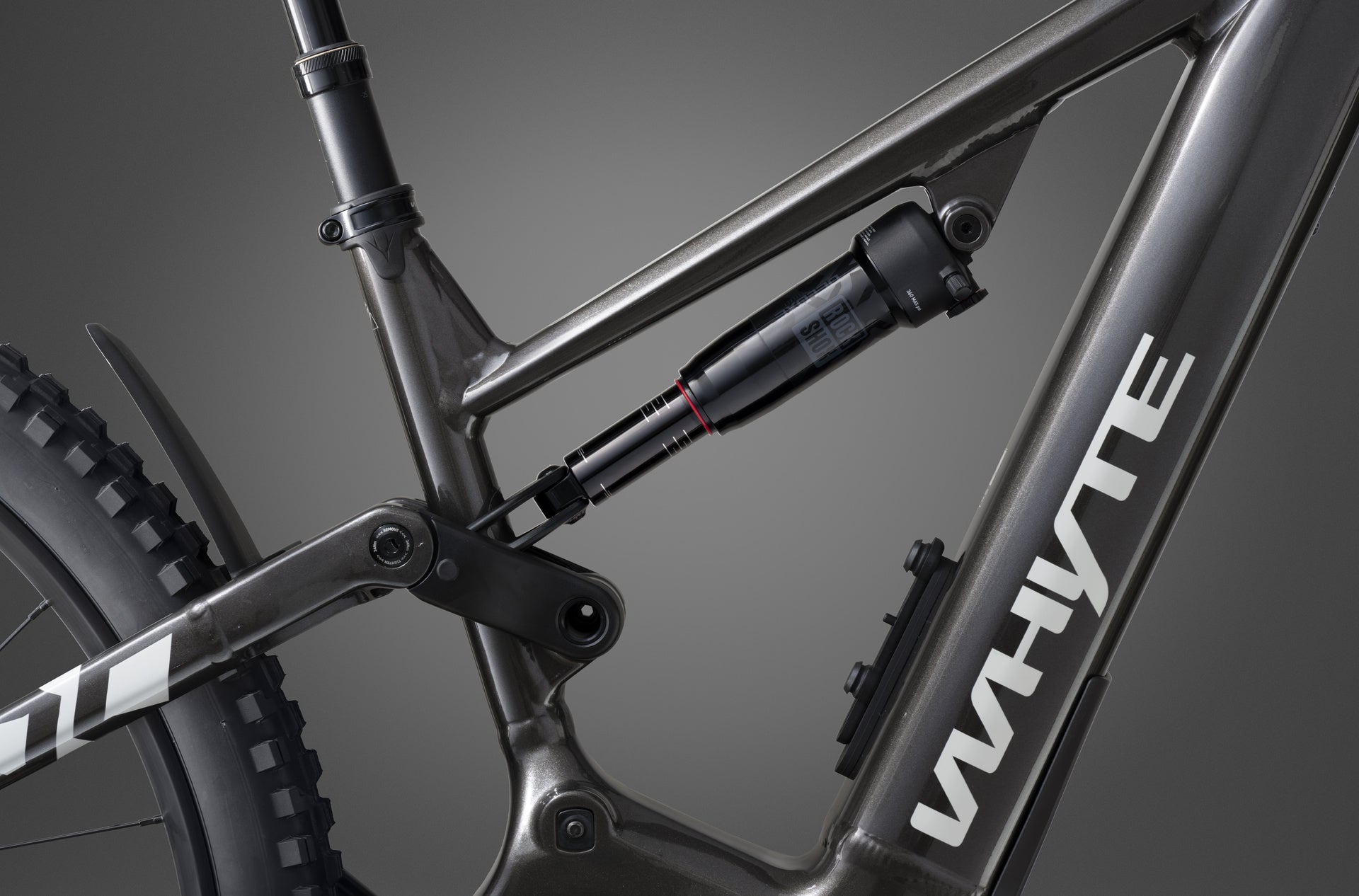

RockShox Deluxe Select R, DebonAir, Fast Black coating, adjustable rebound, custom tuned for Whyte - RIMS
WTB ST Tough, 30mm internal - HUBS
Rear: Shimano FH-TC600, Centre Lock, 12mm x 148mm Boost spacing, HG freehub,32 hole
Front: Shimano FH-TC500, Centre Lock, 15mm x 110mm Boost spacing, 32 hole - HEADSET
Feimin FP-H886J 1-1/8in upper and 1.5in lower with sealed bearings - TYRES
Maxxis Minion DHF, EXO casing, wire bead 29 x 2.5in - CRANK SET

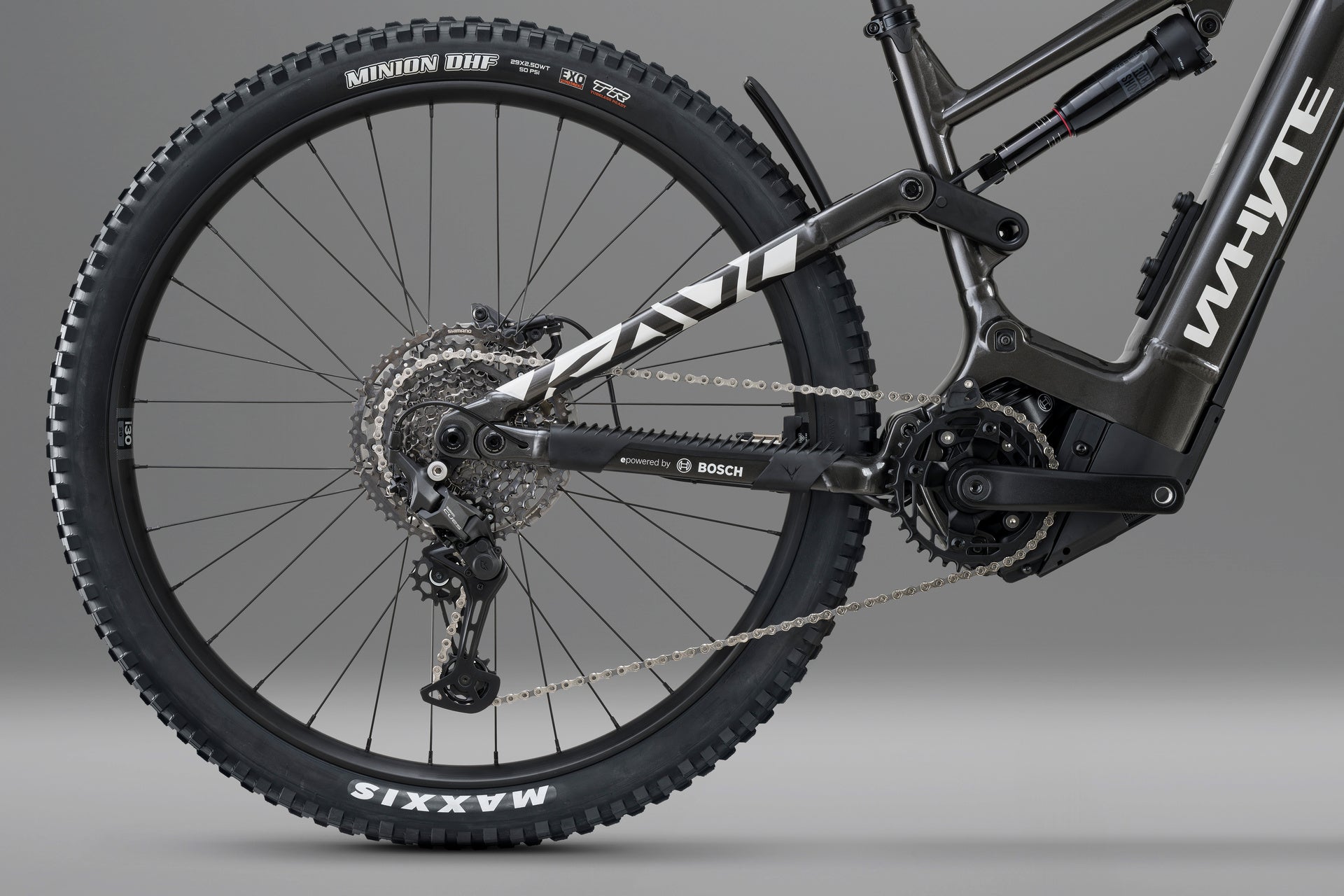

Whyte 160mm ISIS arms, Direct Mount 36T chainring, T-Type - CHAIN
KMC eGlide Sport, 11 speed Cues - REAR DERAILLEUR
Shimano RD-U6000 GS, 11 speed Cues
- SHIFTER
Shimano SL-U6000, 11 speed Cues - CASETTE
Shimano CS-LG400, Cues 11 speed, 11-50T - HANDLEBAR
Whyte Custom 6061 alloy, 30mm rise, 35mm bar bore, 800mm wide - GRIPS
Whyte Lock-On Enduro Grip - STEM
Whyte, 35mm extension, 35mm bar bore - BRAKES FRONT
Front: Shimano M4100 four piston with sintered metal pads, 220mm Centre Lock rotors

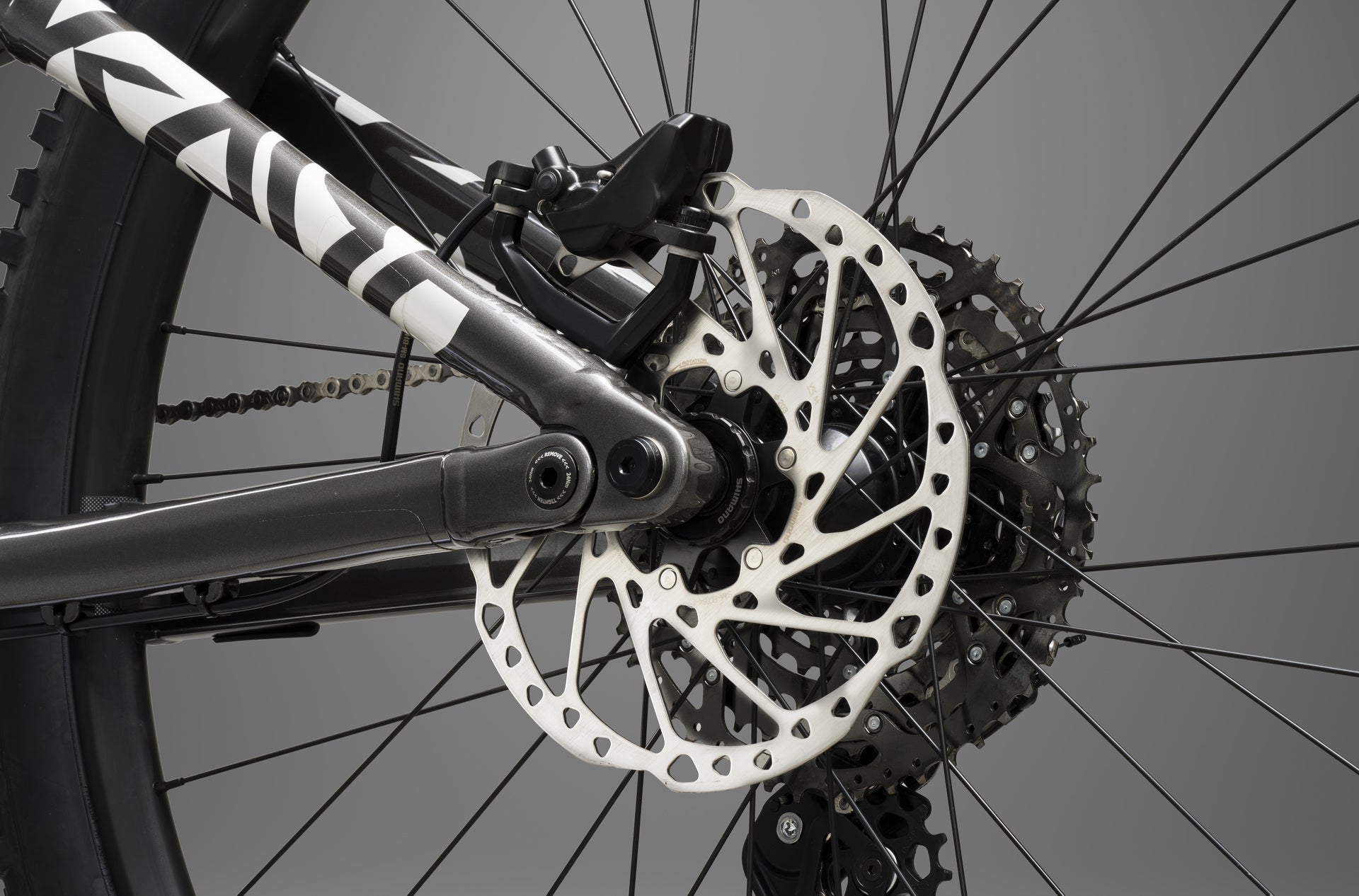

Rear: Shimano M4100 four piston with sintered metal pads, 203mm Centre Lock rotors - SADDLE
Whyte Custom - SEATPOST
TranzX +RAD 30.9mm, adjustable, size-specific drop (size S: 150mm travel; size M: - 170mm travel; sizes L/XL: 200mm travel)
- SIZES
S, M, L, XL - COLOUR
Metallic gloss aston green and Gloss dark silver - WEIGHT
tbc - BOSCH POWERMORE COMPATIBLE
Yes
Although we've taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required, as per the manufacturer.
