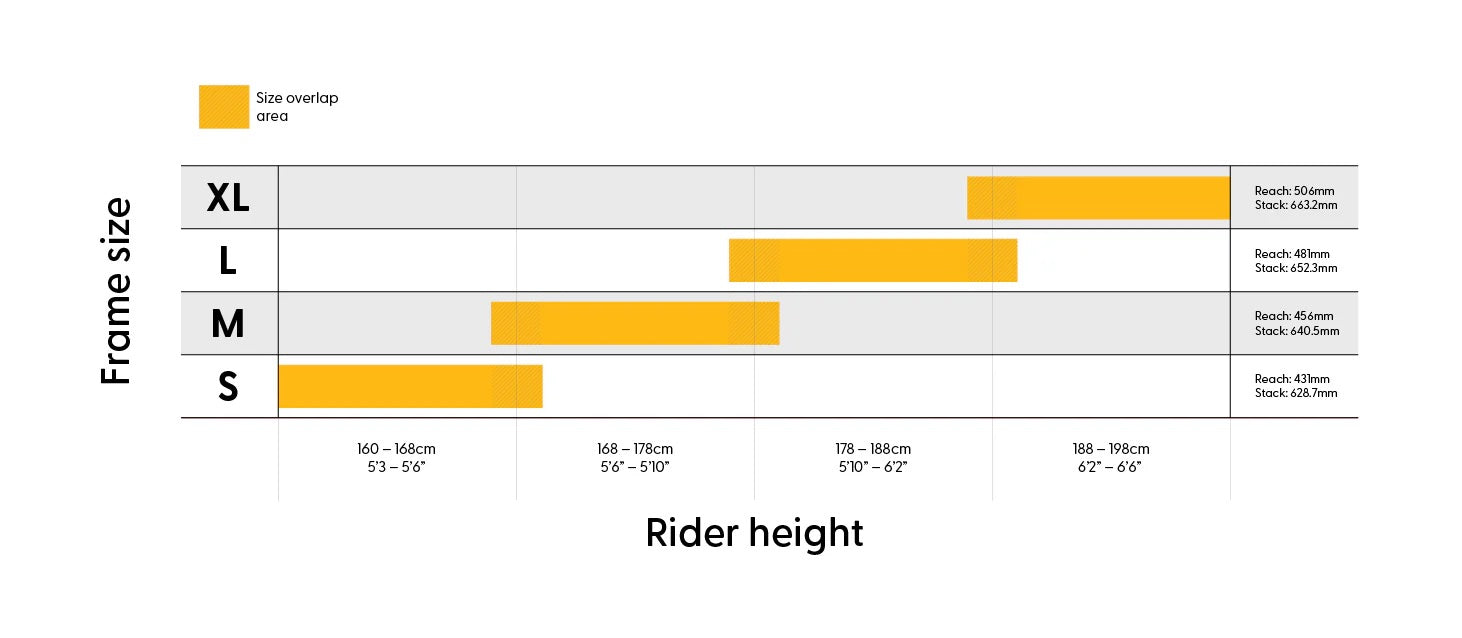

- FRAME SIZE

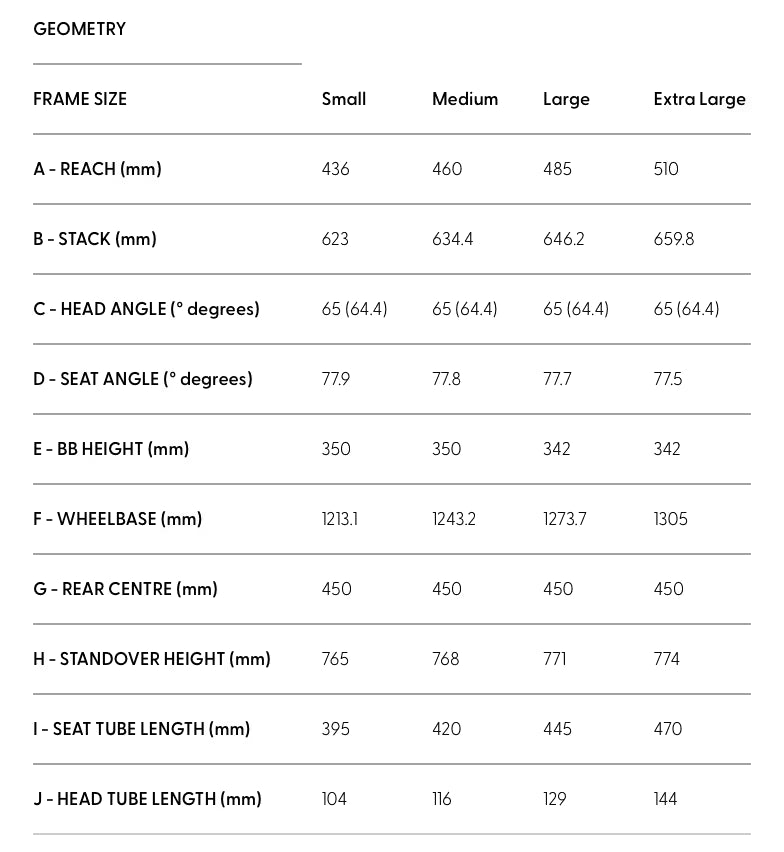

- GEOMETRY
Ride beyond expectations

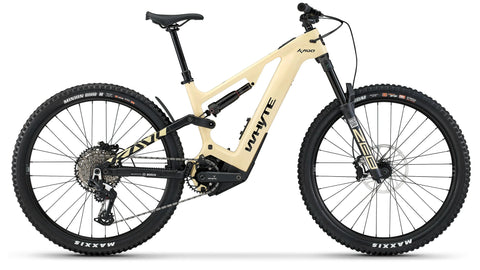

Our mid-range Kado RS is a capable and confidence-inspiring full-power, full-torque eMTB that will help you realise your riding dreams.
With an empowering ride; confidence-inspiring handling; the range to go for miles and miles; Bosch’s refined and reliable motor; an easy to remove 800Wh internal battery; our game-changing low centre of gravity design; meticulously tuned suspension for perfect control; specially curated parts, and more, Kado RS is ready to help you ride beyond your expectations – everywhere.
Highlights
- 160mm front + 150mm rear of custom-tuned suspension travel.
- Carbon fibre mainframe + alloy back end is light and tough.
- Bosch's fifth generation Performance Line CX full-torque (85Nm), full-power (600W) motor.
- 800Wh removeable internal battery so you can ride further.
- 29'' trail-smoothing wheels front and rear.
- Optimised low centre of gravity gives you exceptional, confidence-inspiring handling.
- Geometry adjustment: Switch from ‘High’ to ‘Low’ – to slacken geo by 0.6º and lower the bottom bracket by 8mm – for more gravity-friendly handling.
- Switchable rear wheel: You can swap the rear wheelsize by changing the ‘Shape.It’ link to go from full 29er front and rear to MX (aka ‘mixed wheels – 29in front, 27.5in rear).
Learn more about the full Kado range [here]
E-BIKE SPECIFIC
DRIVE UNIT Bosch Performance Line CX (Smart System) Drive Unit with 85Nm maximum torque, 600W of peak power and 250W of nominal
power. Features four power mode settings including Tour+ and eMTB
BATTERY Bosch PowerTube 800Wh, perfectly integrated into the frame with an intuitive lockable mechanism for easy removal

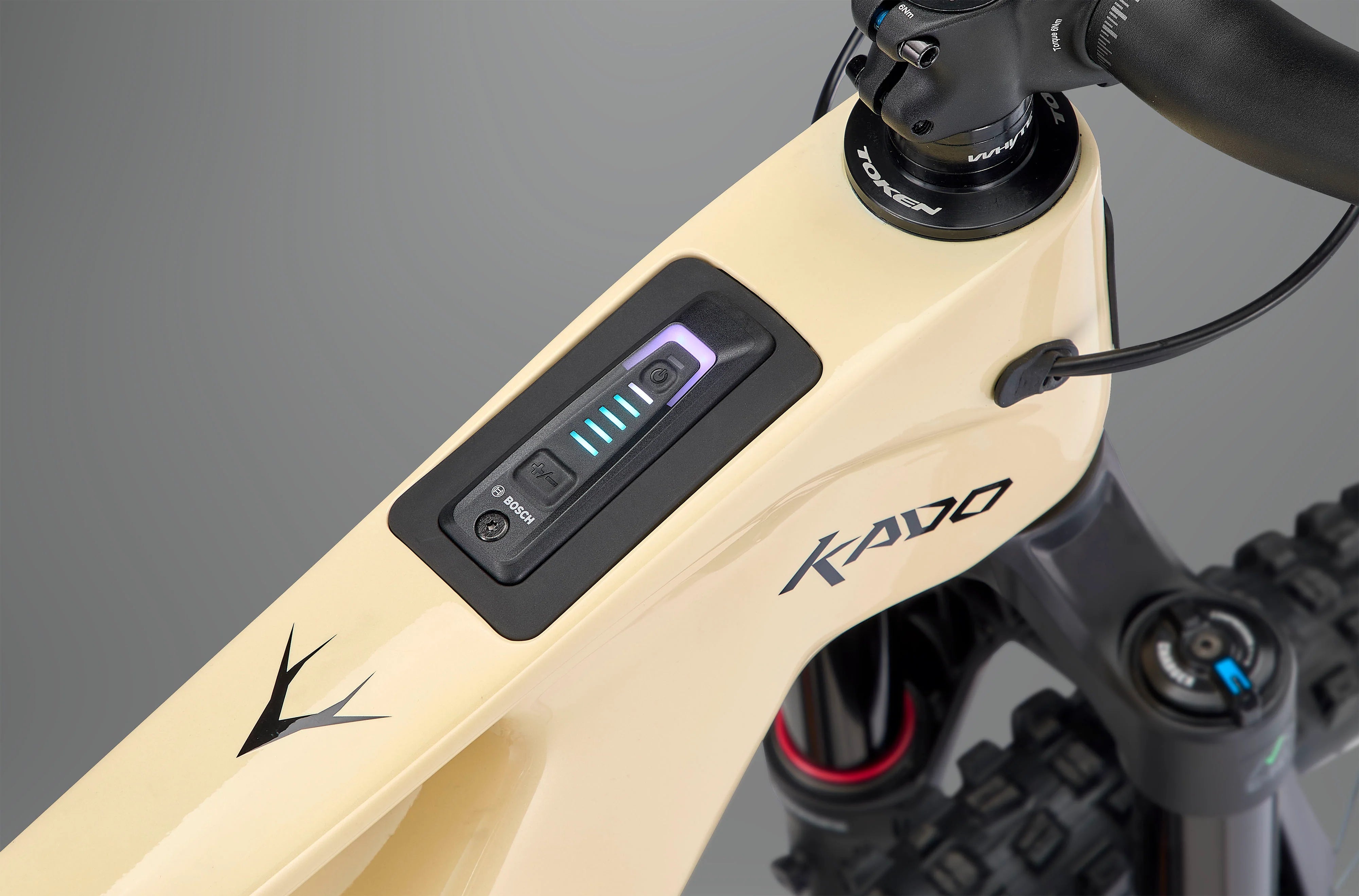

DISPLAY Bosch System controller mounted within the top tube, paired with the discrete bar mounted Mini Remote and Purion 400.
Also connects to the Bosch eBike Flow smartphone app to give you even more insight and control at your fingertips.
CHARGER Charger 4A (230V)
SPECIFICATIONS
- FRAME
Uni-directional carbon mainframe, tapered head tube, internal cable routing, 6061 Alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts - FORK

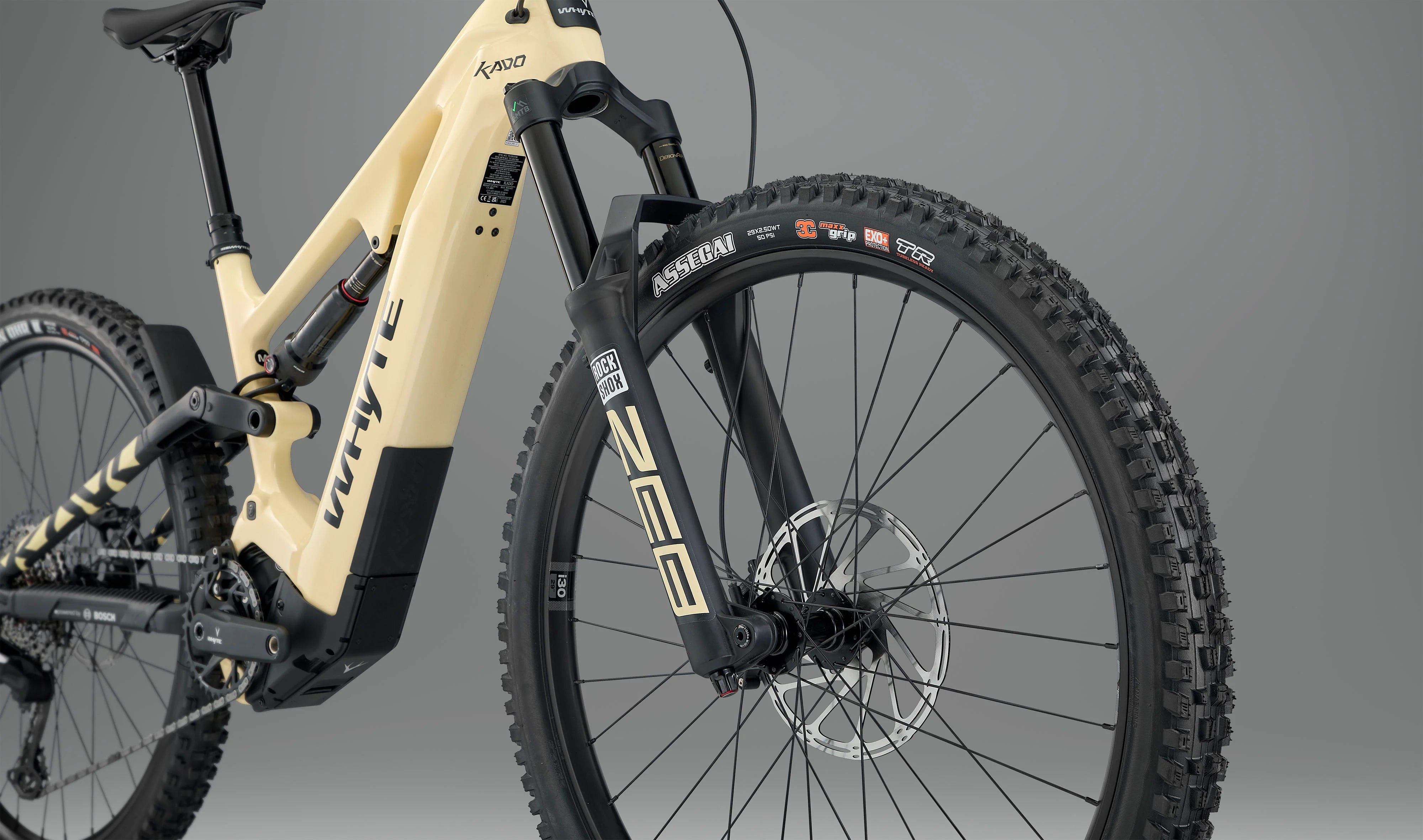

RockShox ZEB Select, 160mm travel, 44mm offset, DebonAir, Charger RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth - SHOCK

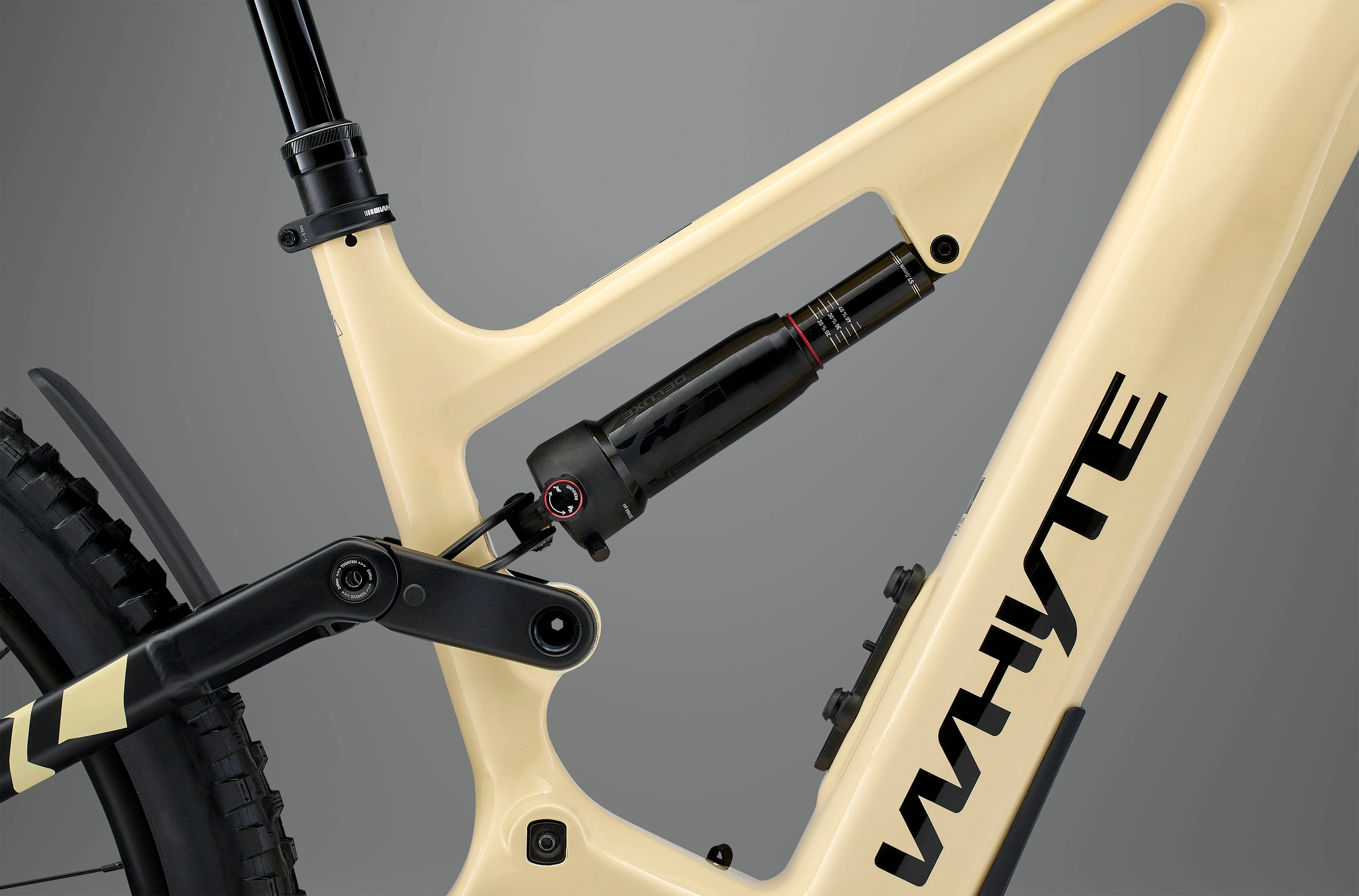

RockShox Deluxe Select R, DebonAir, Fast Black coating, adjustable rebound, custom tuned for Whyte - RIMS
WTB ST Tough front rim, WTB HTZ Trail rear rim, 30mm internal - HUBS
Rear: Alloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, nine degree micro engagement four pawl, 32 hole
Front: Alloy, double sealed cartridge bearings, 12mm x 100mm thru-axle, 32 hole - HEADSET
Token TK19506 1/8in upper and 1.5in lower with sealed bearings - TYRES
Maxxis Assegai WT, TR, 29in x 2.5in 120TPI, EXO+ sidewall protection, 3C MaxxGrip, Dual Compound, folding bead, front; Maxxis Minion DHR 2 WT, TR, 29in x 2.4in 120TPI, Double Down casing, 3C MaxxTerra, dual compound, rear - CRANK SET

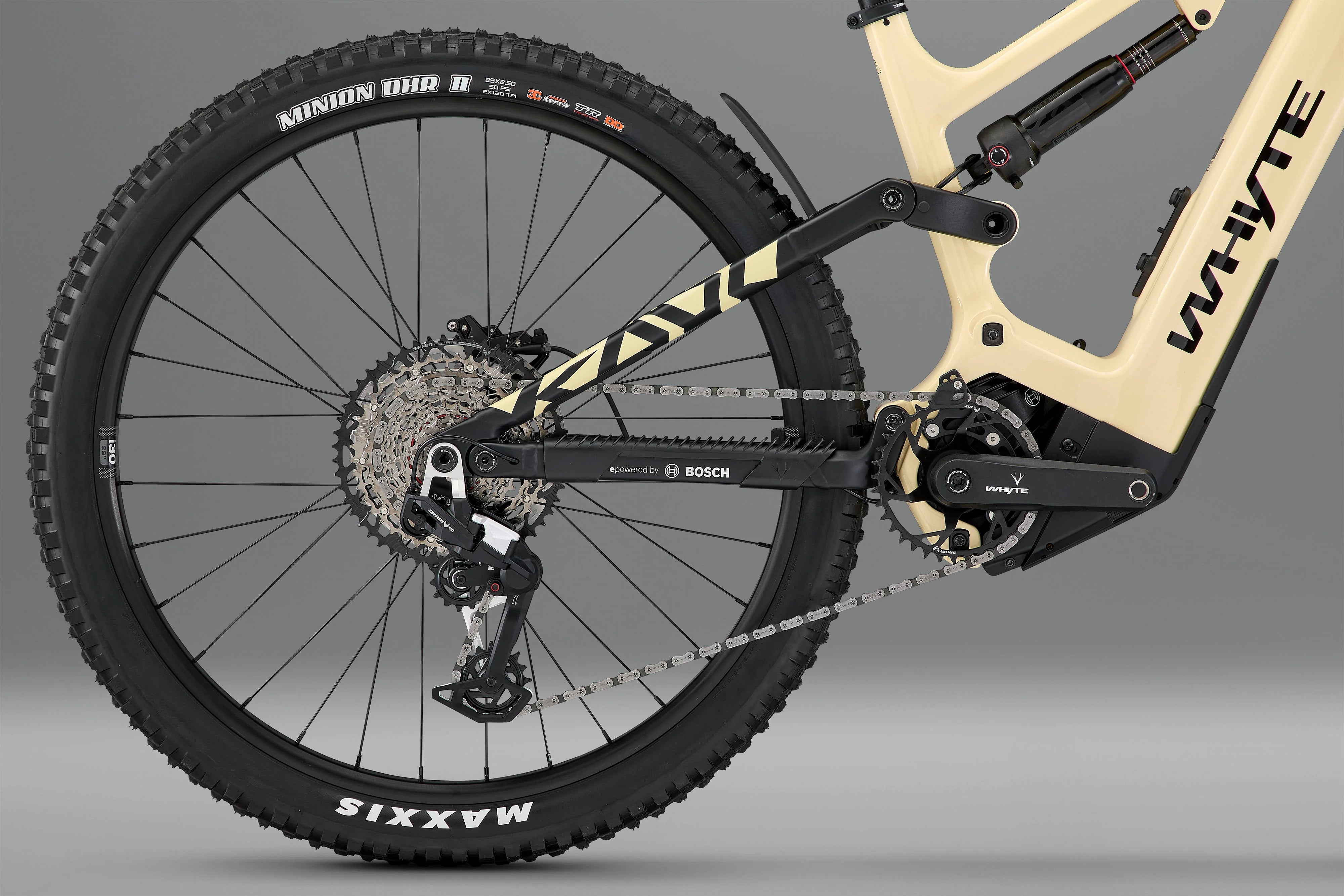

Whyte 155mm ISIS arms, SRAM direct mount 36T chainring, T-Type - CHAIN
SRAM Eagle 70 - REAR DERAILLEUR
SRAM Eagle 90 T-Type mechanical, 12 speed
- SHIFTER
SRAM Eagle 70, 12 speed - CASETTE
SRAM XS 1270, T-Type, 10-52T, 12 speed - HANDLEBAR
Whyte Custom 6061 alloy, 30mm rise, 35mm bar bore, 800mm wide - GRIPS
Whyte Enduro lock-on - STEM
Whyte, 35mm extension, 35mm bar bore - BRAKES

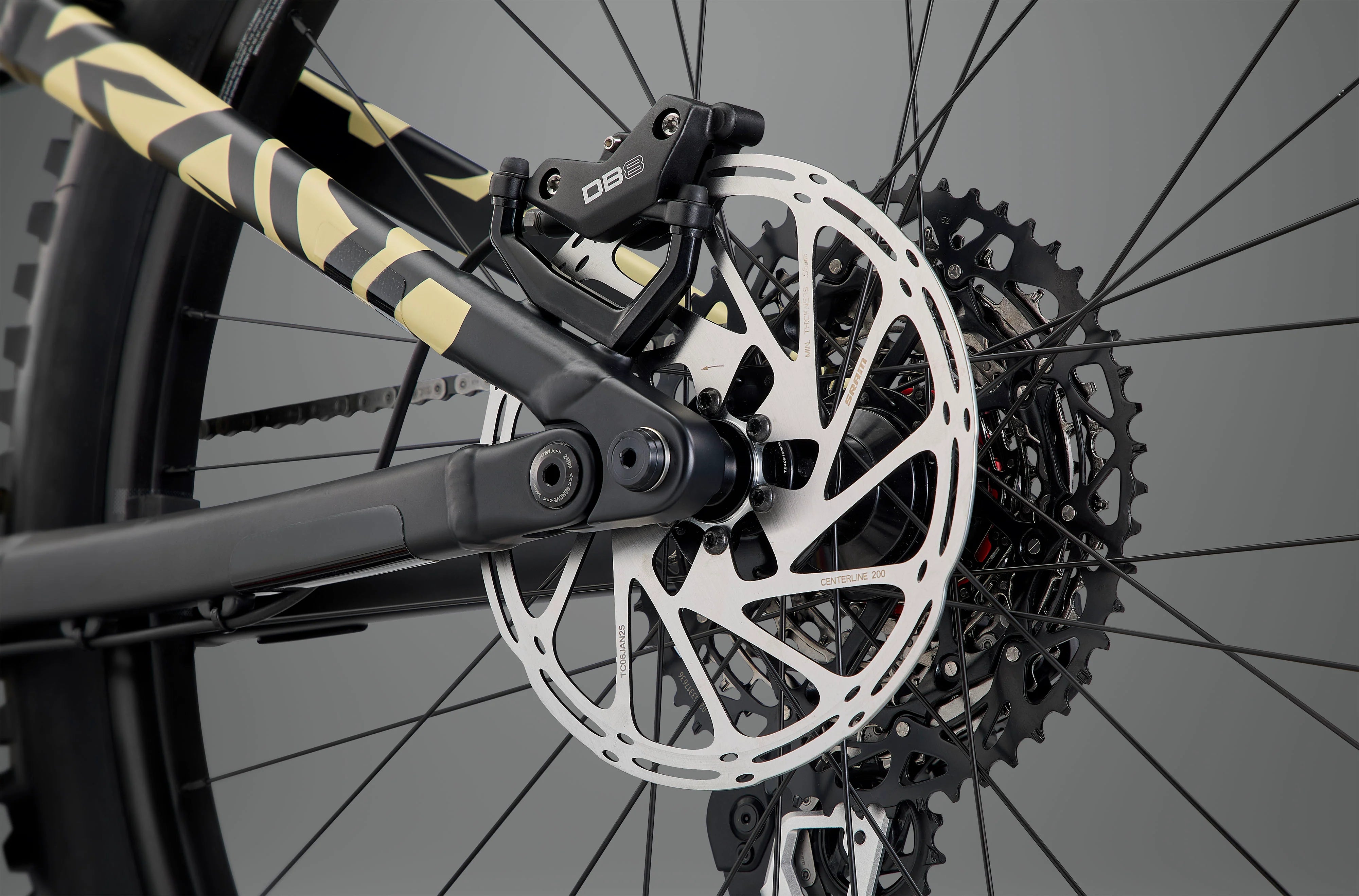

SRAM DB8 Stealth, four piston with sintered metal pads, F:220mm six bolt Centreline rotors, R:200mm six bolt Centreline rotors - SADDLE
Whyte Custom - SEATPOST
TranzX +RAD 34.9mm, adjustable, size-specific drop (size S: 150mm travel; size M: 170mm travel; sizes L/XL: 200mm travel) - SIZES
S, M, L, XL - COLOUR
Gloss dune tan yellow with matte black - WEIGHT
tbc - BOSCH POWERMORE COMPATIBLE
Yes
Although we've taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required, as per the manufacturer.
