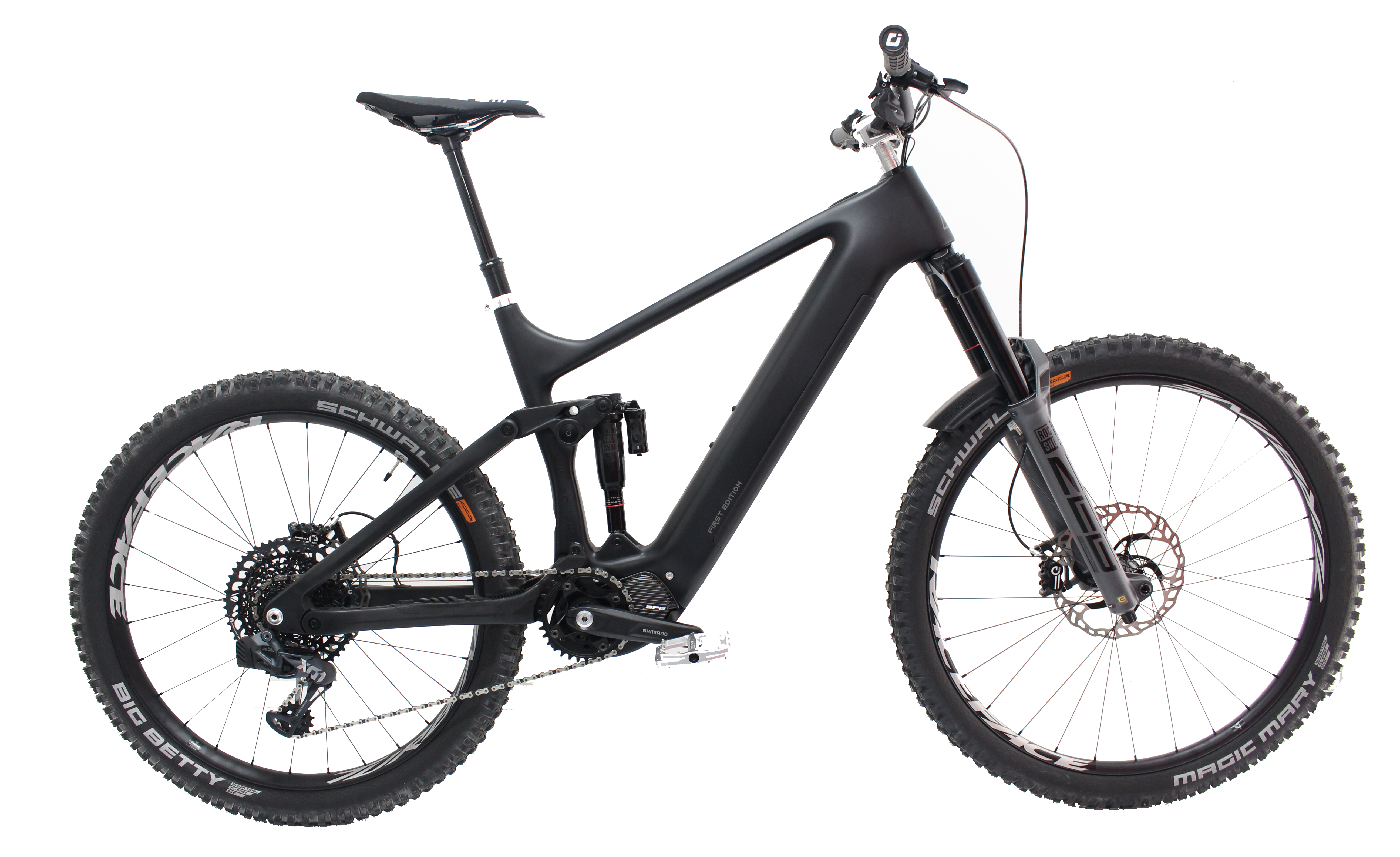

Introducing the Rhyolite Limited First Edition Apex - our ultimate build. With top-of-the-line components such as the Rockshox ZEB Ultimate Fork, Super Deluxe RT shock and Sram X01 Eagle AXS wireless shifting, this bike is designed to conquer any terrain. And to top it off, we've added silver Burgtec parts for that touch of style.
We offer the freedom to swap or change parts around to fit your needs.
Talk to our team today!
One Bike, Unlimited POSSIBILITIES
Our mission is to put the power of choice back into the hands of the rider. To create an E-bike that fits your individual wants, needs and riding style. A bike that you will be far happier with than a bike off the shelf.
Starting with a base product that is created by the people who have dedicated their lives to a knowledge base around bikes and preserving the skills of your local bike shop; wheel builder, and suspension specialist - you end up with a custom E-bike tailored for you.
We don’t strive to be the biggest brand...
Frameset, Ready To Ride or Full Custom Build
Buy a frameset and build your bike from the ground up! Talk to us about your dream build and allow us to source you all the parts needed then build it in store. Choosing a budget friendly, ready to ride option is also possible.
Tailor your Ride, Made To Measure
Building a bike to be a scalpel or a sledgehammer, we can use boutique, handmade components or donor parts you're migrating from the old rig - this build is entirely yours!
We are here to provide advice along the way to help you get the most out of your ride.
Carbon Frame
Seamless sleek looks which deliver exceptional strength and a lightweight frame, thanks to hand laid carbon fibre.
SHIMANO EP801 (45 km/h) Drive and Battery System
Internally Routed Cables
Internally routed cables tidy your cockpit and allow you to focus on the stuff that matters
Trail Focused Geometry
Our dual geometry design allows you to run either both 29 inch wheels or swap the rear wheel for a 27.5 to run slacker angles, or even two 27.5 wheels. Pair this with being able to run a 150-170mm fork which again slackens the head angle and you have a choice of 6 geometry numbers before choosing your parts
E-BIKE SPECIFIC

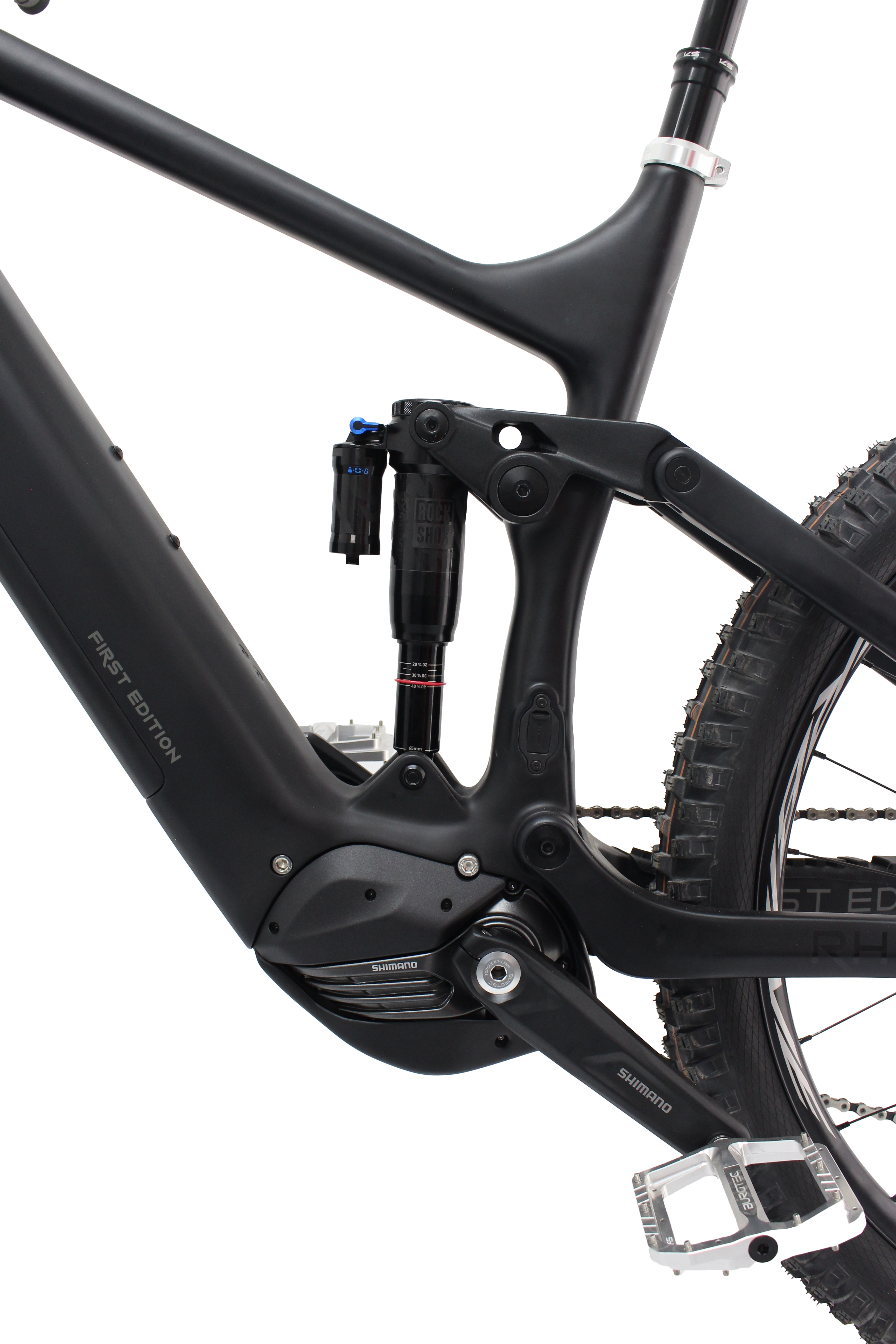

DRIVE UNIT SHIMANO EP8 (EP801) Drive Unit, 85Nm | Assist up to 45 km/h
BATTERY SHIMANO STEPS Integrated Battery (630 Wh)
DISPLAY & REMOTE SHIMANO STEPS Cycle computer and Switch Unit
SPECIFICATIONS
- FRAME
Strong Sleek Look Carbon Fibre Frame, option to run both 29'' wheels, or a 27.5'' wheel in the rear to run slacker angles - FORK

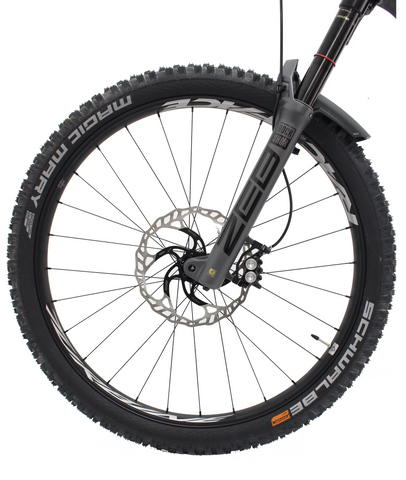

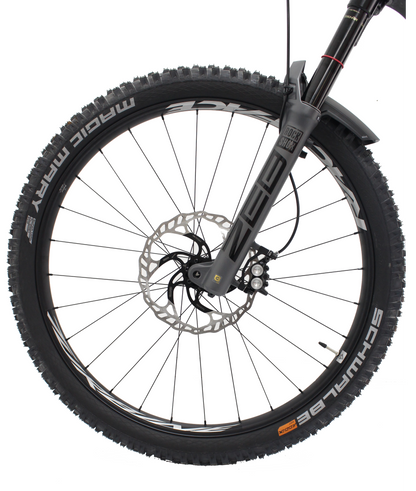

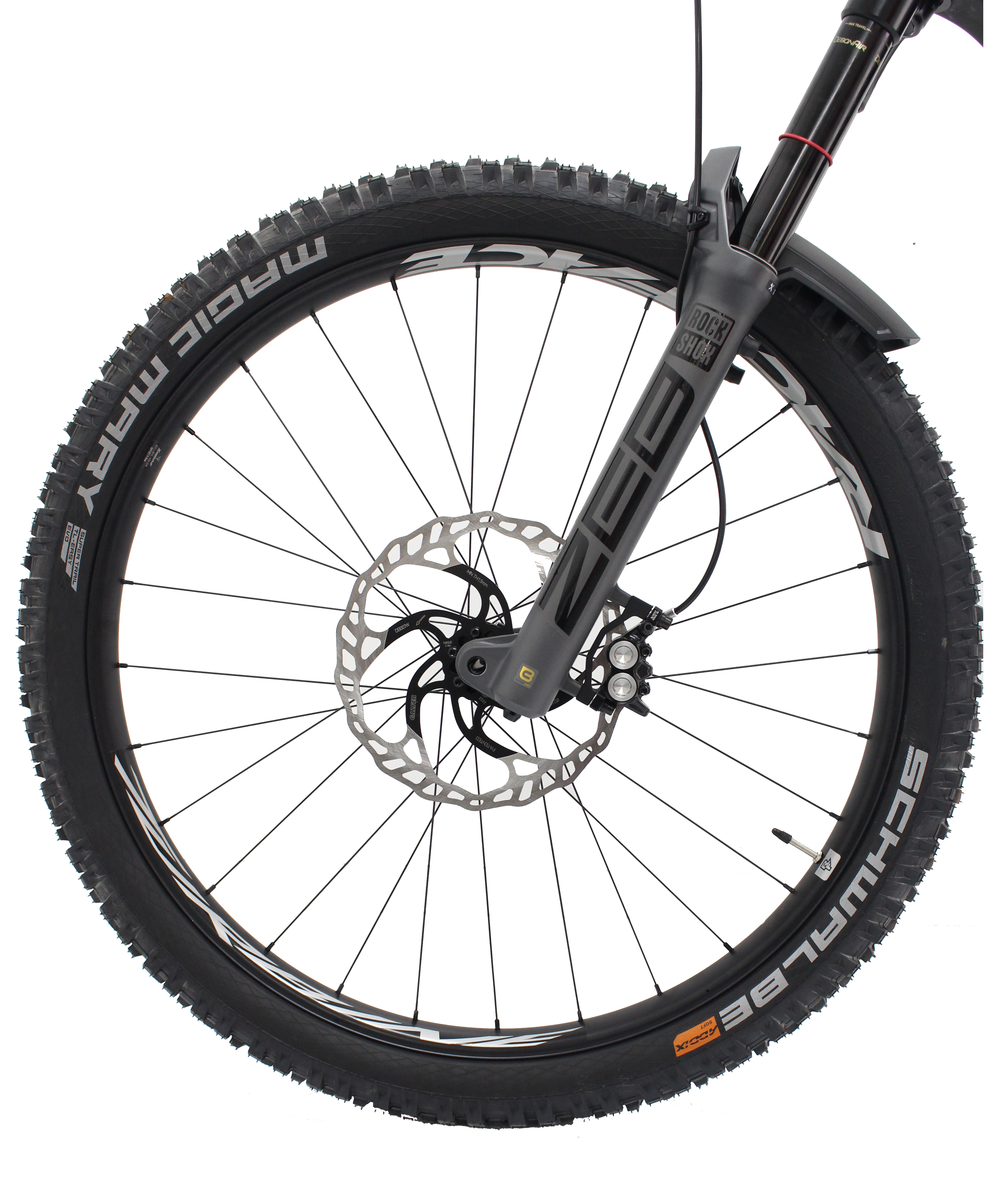

Rockshox ZEB Ultimate 29'', 170mm - SHOCK
Rockshox Super Deluxe RT - WHEELS
Front: Race Face Turbine 15x110, 6-bolt, 29''
Rear: Race Face Turbine 12x148, XD 6-bolt, 27,5'' - HEADSET
Headset with internal cable routing - TYRES
Front: Schwalbe Magic Mary 29''x 2.6 / SuperTrail Addix SOFT
Rear: Schwalbe Big Betty 27.5 x 2.6 Addix Soft (Orange) SuperTrail - CRANK SET
Shimano crank arm set, FC-EM600, 160MM, - CHAIN

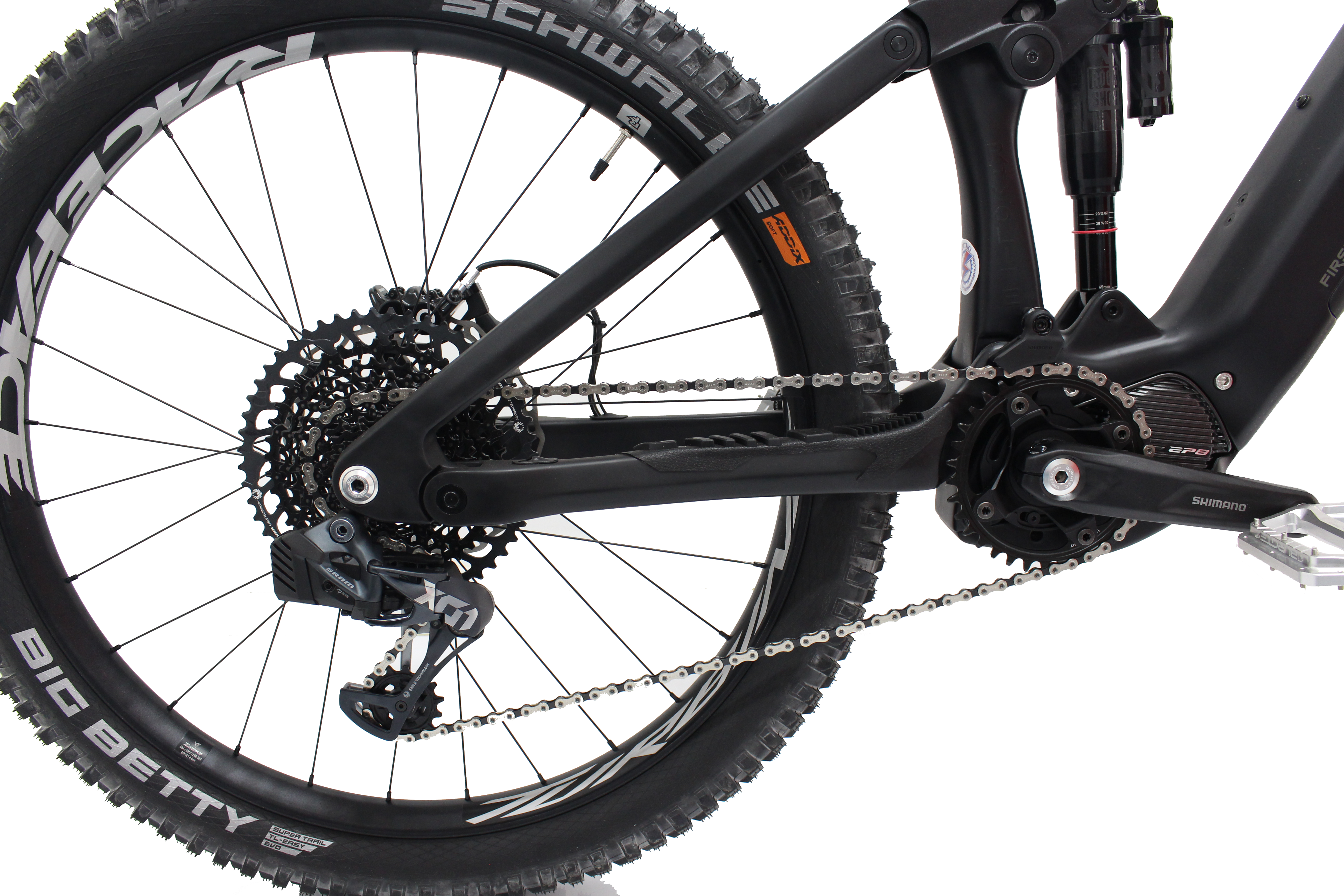

Sram GX Eagle Chain 12-speed - REAR DERAILLEUR
X01 Eagle™ AXS
- SHIFTER
Eagle™ AXS Controller - CASETTE
Sram XG-1275 Eagle™ 10-52 Cassette GX 12-speed - HANDLEBAR
Raceface handlebar - GRIPS
ODI Elite Flow Grips - STEM
Burgtec Enduro MK3 35 Stem - BRAKES
Front: Magura MT5 eStop E-bike Optimised, Galfer MTB Disc Wave 6 bolt 2.0 223
Rear: Magura MT5 eStop E-bike Optimised, Galfer MTB Disc Wave 6 bolt 2.0 203 - SADDLE
Deity Speed Trap Saddle Black/Chrome - SEATPOST
KS Ragei C226 - COLOUR
Matt Black - PEDALS
Burgtec MK5 Penthouse Pedalse in Rhodium Silver - WEIGHT
TBC - EXTRA
Silver parts: Burgtec Pre Tension Crank Bolt, Burgtec Stem Spacers, Burgtec Top Cap and Bolt, Burgtec Seat Post clamp and Burgtec Universal Derailleur Hanger
- Geometry 29-inch wheels set-
- Geometry Mullet wheels set-up

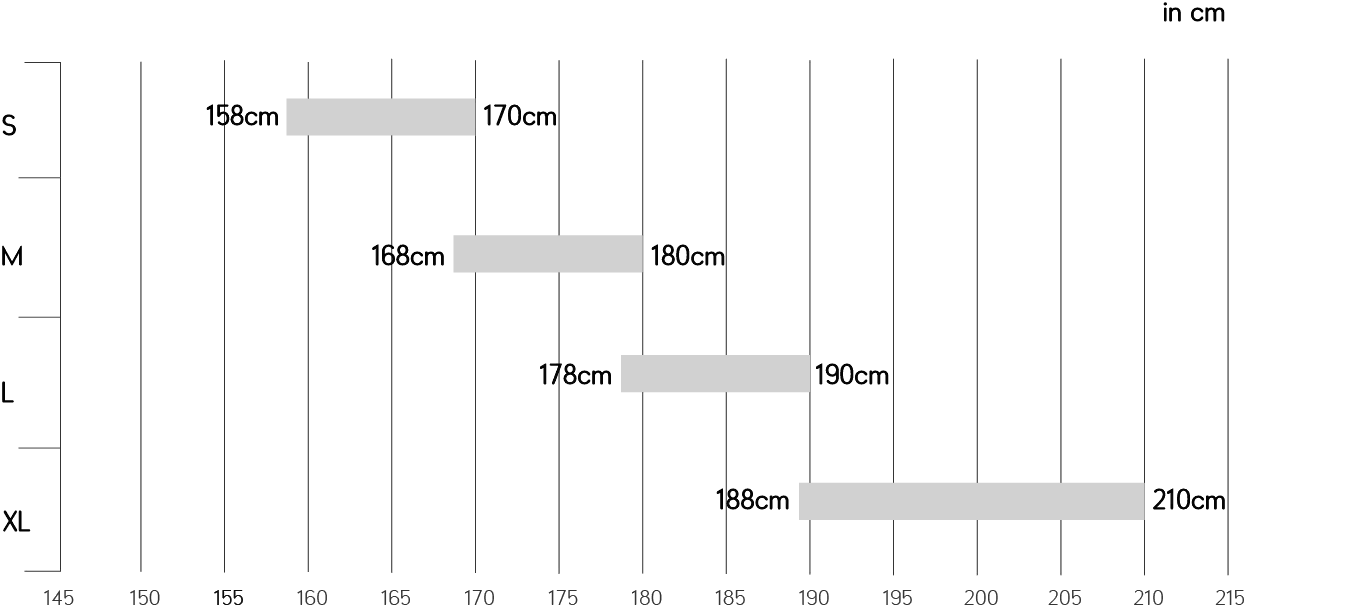

- Size Chart
Rhyolite First Editions Demo E-bike
We have Rhyolite's available in small, medium, large and extra large.
Currently at a flat rate of $129, with maximum demo period of 8-hours.
Experience the speed, power and playfulness of a Rhyolite E-bike.
The Rhyolite First Edition features the Shimano EP801 motor system and a 630Wh battery. What is special about this motor system is that it assists up to 45km/hr. Where most E-bikes in New Zealand assist up to 32km/hr.
This; together with a fully carbon frame, makes it a lightweight, full-power E-bike - Where power, speed and playfulness are combined in one.
Rhyolite’s mission is to put the power of choice back into the hands of the rider. To create an E-bike that fits your individual wants, needs and riding style. Talk to us about your dream Rhyolite build today!
